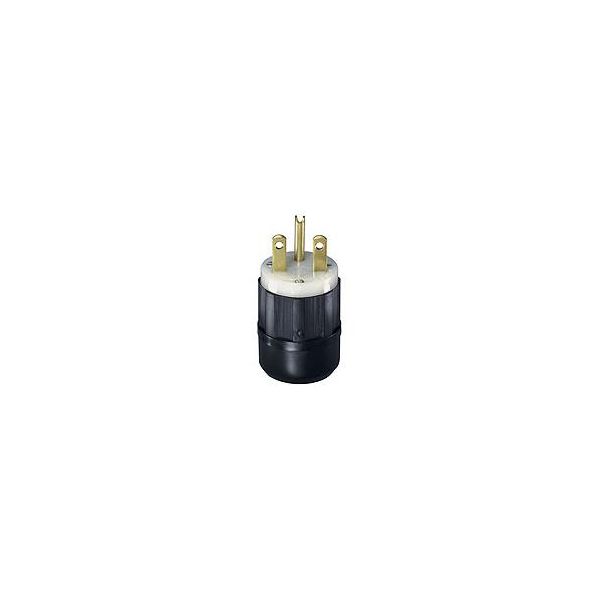

Leviton 5666-C
BLACK PLUG NEMA N6-15P
SKU
702499
Leviton® 5666-C Straight Blade Plug, Angled Cable Mount Grounding, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15P NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Nylon, Black/White, 1.53 in Dia x 1.98 in H Dimensions
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- 18 to 10 AWG terminal accommodation
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Super tough nylon body
| Grade | Industrial |
|---|---|
| Number of Poles | 2 |
| Color | Black/White |
| Type | Angled Cable Mount Grounding |
| Dimensions | 1.53 in Dia x 1.98 in H |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Cord Diameter | 0.25 to 0.685 in |
| Voltage Rating | 250 VAC |
| Temperature Rating | -40 to 60 deg C |
| Material | Nylon |
| NEMA Rating | NEMA 6-15P |
| Brand | Leviton Mfg |
