Metal Fab 5M90
5" 90° ADJ. ELBOW M/F BVENT
SKU
408697

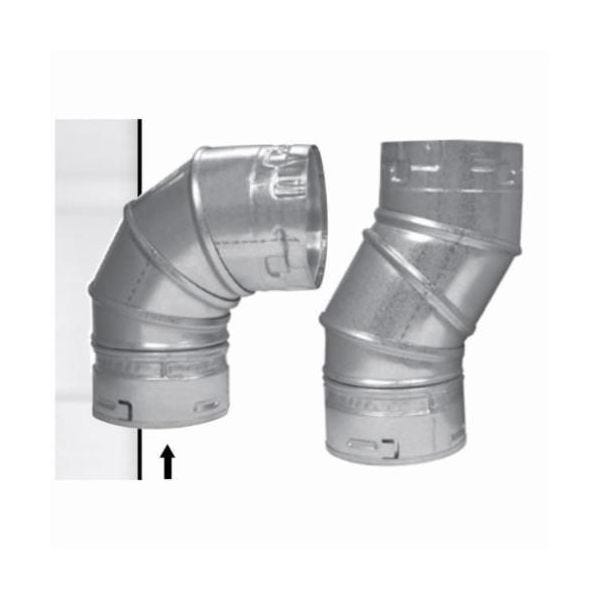

METAL-FAB® Elbow, Adjustable Double Wall, Series: M90, 5 in Size, SureLock™ Connection, 90 deg Angle, 11 in Length, For Use With: Double Wall Type-B Gas Vent System, Hot Dipped Galvanized, Domestic
- Products tested and listed to UL 441 requirements to ensure safety and efficiency
- The five-piece M90 short radius elbow is fully adjustable from 0 (straight) to 90 deg
- The 360 deg rotating collar allows for desired orientation of vent pipe
- SureLock™ locking system, no sheet metal screws required
- The outer wall is constructed of galvanized steel, 0.018 in THK G-90 for sizes 3 to 14 in Dia and 0.024 in THK G-90 for sizes 16 to 30 in Dia
- The inner wall is constructed of aluminum alloy, 0.012 in THK for sizes 3 to 8 in Dia and 0.018 in THK for sizes 10 to 30 in Dia
- The vent includes an integral, annular insulating air space, 1/4 in THK for sizes 3 to 6 in Dia and 1/2 in THK for sizes 7 to 30 in Dia
| Size | 5 in |
|---|---|
| Domestic/Import | Domestic |
| Angle | 90 deg |
| Suitable For Use With | Double Wall Type-B Gas Vent System |
| Type | Adjustable Double Wall |
| Finish | Hot Dipped Galvanized |
| Series | M90 |
| Connection Type | SureLock™ |
| Length | 11 in |
| Brand | Metalfab |
