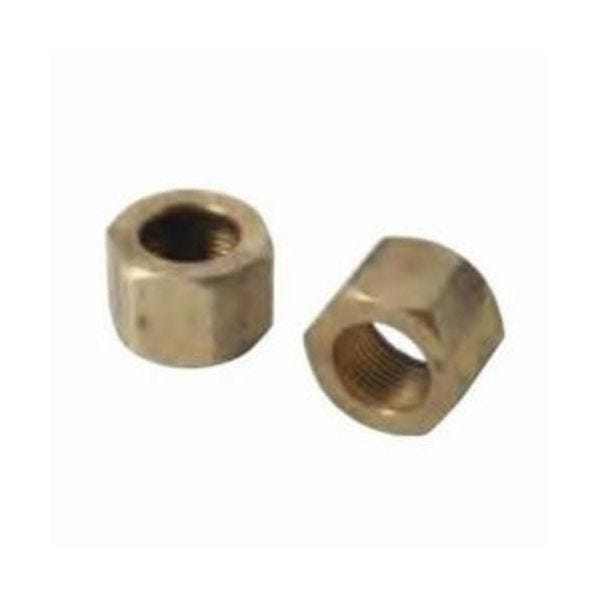

BrassCraft 61-10 C
5/8 OD CP COMP NUT
SKU
1210
BrassCraft® Tube Nut, Series: 61 Series, Nut Fitting/Connector, 5/8 in Nominal, Compression End Style, 0.035 in Thickness, 15/16 in Hex, 0.56 in Length, 150 psi Pressure, -65 to 250 deg F, Brass, Polished Chrome, 0.632 in ID Dimension, Domestic
- Do not require any flaring, soldering or other type of tubing preparation
- Available in a broad range of sizes and styles
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Warning do not use compression fittings for gas connections of any kind
- Plastic tubing requires 63PT insert and 60PT sleeve
- Fair vibration resistance
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Polished Chrome |
| Dimensions | 0.632 in ID |
| Length | 0.56 in |
| End Style | Compression |
| Hex Size | 15/16 in |
| Domestic/Import | Domestic |
| Nominal Size | 5/8 in |
| Fitting/Connector Type | Nut |
| Material | Brass |
| Thickness | 0.035 in |
| Series | 61 Series |
| Pressure Rating | 150 psi |
| Brand | BrassCraft |
| OD Tube Size | 5/8" |
| Type | Compression Nut |
