Hannibal Carbide Tool 63121
RAKE, ROAD 14 TINE H/D R14
SKU
659680

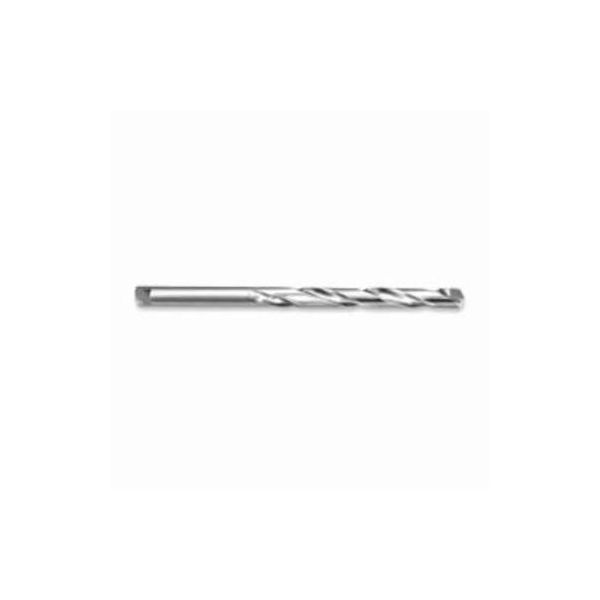

Hannibal Taper Length Drill, Material Specific, Series: 631F, 21/64 in Drill Size - Fraction, 0.3281 in Drill Size - Decimal Inch, 6-1/2 in Overall Length, 4-1/8 in Cutting Depth, Twist Flute, 4-1/8 in Flute Length, Straight/Tanged Shank, 135 deg Point, Split Point, Carbide Cutting Edge, Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials
- Drills are end cutting tools used to produce holes when rapid removal of material is desired
- Twist drills are generally effective in holes up to 3 tool diameters deep - peck cycles should be used for deeper holes to achieve better chip evacuation
- 135 deg split point designed for drilling tough abrasive or high tensile materials
- Longer flute and overall lengths than jobbers length drills
- Carbide tip high temperature brazed to hardened tool steel body
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- The longer length of these drills increases their effective reach through drill bushings
- For use in ASA split sleeve drill drivers
| Cutting Depth | 4-1/8 in |
|---|---|
| Point Type | Split |
| Drill Size - Decimal Inch | 0.3281 in |
| Applicable Materials | Cast Iron and Non-Ferrous Materials |
| Shank Type | Straight/Tanged |
| Flute Length | 4-1/8 in |
| Drill Size - Fraction | 21/64 in |
| Flute Length | 4-1/8 in |
| Point Angle | 135 deg |
| Cutting Edge Material | Carbide |
| Drill Size - Decimal Inch | 0.3281 in |
| Type | Material Specific |
| Overall Length | 6-1/2 in |
| Point Type | Split |
| Point Angle | 135 deg |
| Shank Type | Straight/Tanged |
| Series | 631F |
| Cutting Edge Material | Carbide |
| Cutting Depth | 4-1/8 in |
| Material | Tool Steel |
| Flute Type | Twist |
| Brand | The Ames Co’s |
