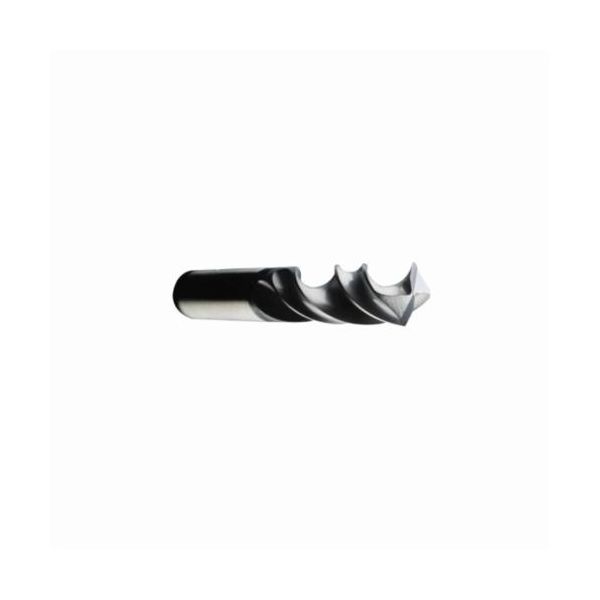

SGS® Double Margin Drill, High Performance, Series: HI-PERCARB® 135M, 14.5 mm Drill - Metric, 0.5709 in Drill - Decimal Inch, 115 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 65 mm Flute Length, 16 mm Dia x 48 mm L Shank, Straight Shank, 145 deg Point, Notched Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiN Coated, Applicable Materials: Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel
- High performance flute design efficiently transports chips
- Increases strength for aggressive drilling
- Ti-NAMITE-A coating improves resistance to heat and wear and enhances tool life
- Double margin design improves accuracy and surface finish
- Increases stability and rigidity
- Secondary flute improves coolant flow to the point
- Reduces friction along drill body
- Assists in fine swarf evacuation
- Specialized 145 deg notched point, self-centering eliminates the need for spot drill
- Improves chip control
- Decreases drill thrust and deflection
- Engineered for edge protection improves edge strength
- Reduces edge fatigue and allows increased feed rates
| Cutting Depth | 3XD |
|---|---|
| Point Type | Notched |
| Drill Size - Decimal Inch | 0.5709 in |
| Applicable Materials | Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel |
| Drill Size - Metric | 14.5 mm |
| Shank Type | Straight |
| Flute Length | 65 mm |
| Flute Length | 65 mm |
| Point Angle | 145 deg |
| Cutting Edge Material | Solid Carbide |
| Drill Size - Decimal Inch | 0.5709 in |
| Number of Flutes | 2 |
| Drill Size - Metric | 14.5 mm |
| Type | High Performance |
| Overall Length | 115 mm |
| Shank Size | 16 mm Dia x 48 mm L |
| Point Type | Notched |
| Point Angle | 145 deg |
| Shank Size | 16 mm Dia x 48 mm L |
| Finish | TiN Coated |
| Shank Type | Straight |
| Series | HI-PERCARB® 135M |
| Cutting Edge Material | Solid Carbide |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Material | Solid Carbide |
| Flute Type | Right Spiral |
| Cutting Direction | Right Hand |
| Brand | The Ames Co’s |
