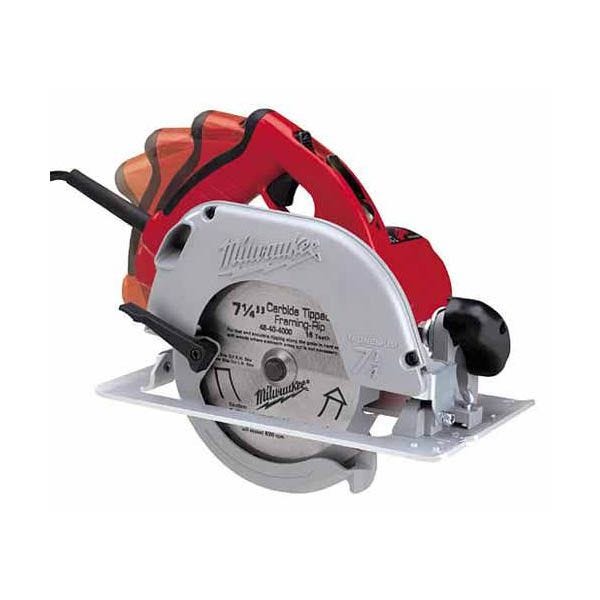

Milwaukee 6390-21
7-1/4" TILT/HDL CIRC SAW KIT
SKU
663868
Milwaukee® TILT-LOK Corded Circular Saw Kit, 7-1/4 in Dia Blade, Blade Side Right, 5/8 in Arbor/Shank, 5800 rpm Speed, Cutting Capacity: 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg, 45/50/90 deg Cutting Angle, Bevel Capacity: 50 deg, Aluminum Shoe, 3-1/4 hp, 120 VAC/VDC, 15 A, Plastic Housing Material, Front Palm/Soft Grip/Top D-Handle, Fixed Double Insulated Cord, On/Off Control, 13-3/4 in L Dimensions
- New exclusive Tilt-Lok™ main handle adjusts to the work or most comfortable work position
- 15 A, 3.25 peak horsepower motor - most powerful circle saw cuts tough materials including headers, micro lams and wet lumber with ease
- Wide, clear sight line - superior blade visibility from either side
| Control Type | On/Off |
|---|---|
| Housing Material | Plastic |
| Voltage Rating | 120 VAC/VDC |
| Cutting Capacity | 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg |
| Speed | 5800 rpm |
| Amperage Rating | 15 A |
| Blade Size | 7-1/4 in Dia |
| Blade Side | Right |
| Cutting Angle | 45/50/90 deg |
| Cord Type | Fixed Double Insulated |
| Arbor/Shank Size | 5/8 in |
| Tool/Kit | Kit |
| Horsepower | 3-1/4 hp |
| Bevel Capacity | 50 deg |
| Shoe Material | Aluminum |
| Dimensions | 13-3/4 in L |
| Handle Type | Front Palm/Soft Grip/Top D-Handle |
| Brand | Milwaukee Tool |
