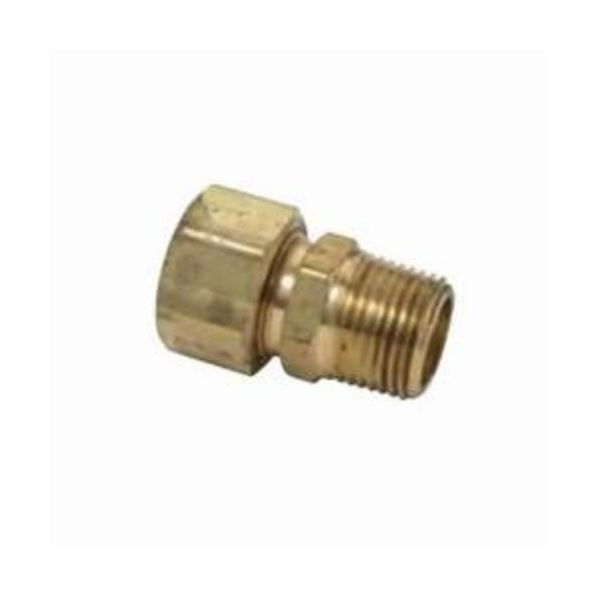

BrassCraft 68-8-4X
LF 1/2OD X 1/4COMP MALE ADAP
SKU
49033
BrassCraft® Tube Reducing Adapter, Series: 68 Series, Fitting/Connector: Adapter, 1/2 x 1/4 in Nominal, Compression x MNPT End Style, 0.032 in Thickness, 11/16 in Hex, 200 psi Pressure, -65 to 250 deg F, Brass, Rough, 0.31 in ID Dimensions, Import
- Do not require any flaring, soldering or other type of tubing preparation
- Available in a broad range of sizes and styles
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Warning do not use compression fittings for gas connections of any kind
- Plastic tubing requires 63PT insert and 60PT sleeve
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Rough |
| Dimensions | 0.31 in ID |
| End Style | Compression x MNPT |
| Hex Size | 11/16 in |
| Domestic/Import | Import |
| Nominal Size | 1/2 x 1/4 in |
| Fitting/Connector Type | Adapter |
| Material | Brass |
| Thickness | 0.032 in |
| Series | 68 Series |
| Pressure Rating | 200 psi |
| Brand | BrassCraft |
| OD Tube Size | 1/2" |
| Type | Male Adapters |
