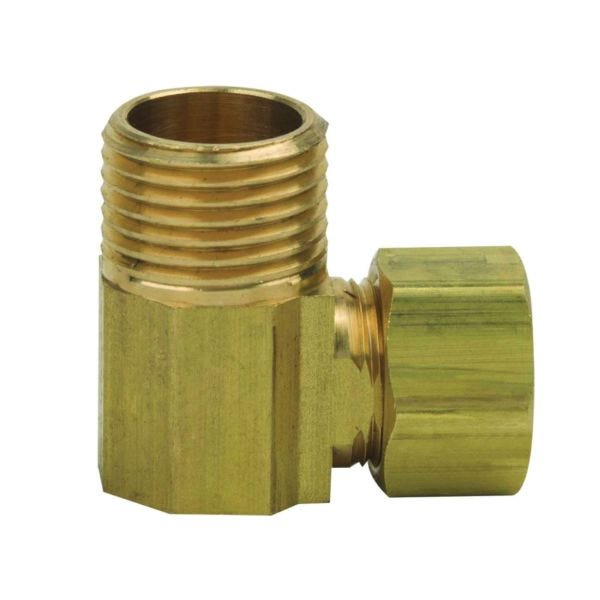

BrassCraft 69-8-8X
LF 1/2ODX1/2 COMP MALE 90 ELL
SKU
1200
BrassCraft® Tube Elbow, Series: 69 Series, Fitting/Connector: 90 deg Elbow, 1/2 in Nominal, Compression x MNPT End Style, 0.032 in Thickness, 0.82 in Hex, 1.37 in Length, 200 psi Pressure, -65 to 250 deg F, Brass, Rough, 1-1/2 in H Dimensions, Import
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Plastic tubing requires 63PT insert and 60PT sleeve
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Rough |
| Dimensions | 1-1/2 in H |
| Length | 1.37 in |
| End Style | Compression x MNPT |
| Hex Size | 0.82 in |
| Domestic/Import | Import |
| Nominal Size | 1/2 in |
| Fitting/Connector Type | 90 deg Elbow |
| Material | Brass |
| Thickness | 0.032 in |
| Series | 69 Series |
| Pressure Rating | 200 psi |
| Brand | BrassCraft |
| OD Tube Size | 1/2" |
| Type | Male 90° Elbow |
