Spears 722311-020

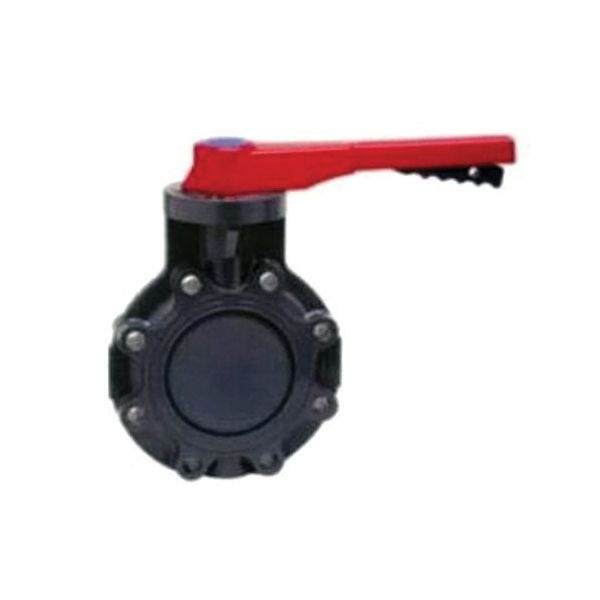

Spears® Butterfly Valve, 2 in Nominal, Flanged, 150 lb, 140 deg F, Lever Handle Actuator, 1-15/16 in Inlet to Outlet Length, 6-13/32 in Top to Inlet Center, PVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, EPDM, Gray, 6 in Dia x 9-11/32 in H, Domestic

• Special off-set Disc lifts quickly from seat to reduce wear and reduce operating torque
• Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
• Interlocking body and seat prevents wash-out or blow-out
• Fully isolated solid type 316L stainless steel stem
• Reversible high impact polypropylene lever handle with 7-Position stops and built-in lockout (Standard handle on 1-1/2 - 8 in valves, not available on 10 in and larger valves)
• High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
• Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts
• Standard valve accepts field-installable lug inserts set option
• True lug design has factory installed zinc plated or stainless steel 316 lugs and is specially designed for connection to either side of valve
• Pressure rated to 150 psi at 73 deg F including dead-end service
• Valves with EPDM seals and seats are NSF® certified for potable water use
• EPDM O-ring
