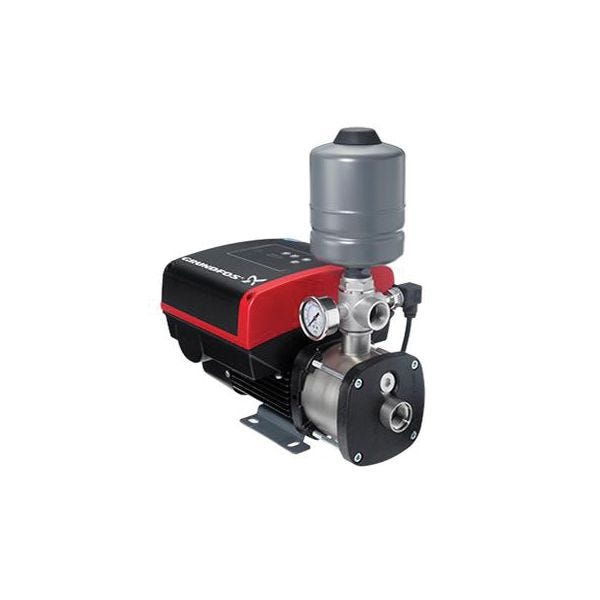

Grundfos 98810921

CMBE BOOSTER PUMP
SKU
749310
The product cannot be delivered by Truck Shipping

Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 8.81 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 5.95 ft Maximum Suction Lift, 1.012 hp, 115 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (5) 304 Stainless Steel Impeller, Horizontal Mount, 113 deg F Ambient, IP55, 304 Stainless Steel, 12.83 in L x 8.54 in W x 17.32 in H

  • Constant pressure via integrated speed control
  • Robust, stainless steel design
  • Easy installation
  • Low energy consumption
  • Dry running protection
  • Noise level below 55 dBA and even lower at controlled speed
  • Five way fitting with non-return valve
  • Diaphragm tank
  • Pressure gauge
  • Pressure sensor
  • High-efficiency motor with frequency converter (IP55)
  • US cable and NEMA 5-15 plug
  • O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
More Information
Dimensions 12.83 in L x 8.54 in W x 17.32 in H
Impeller Type (5) 304 Stainless Steel
Maximum Suction Lift 5.95 ft
Power Rating 1.012 hp
Flow Rate 8.81 gpm
Power Rating 1.012 hp
Type Compact Multi-Stage
Temperature Rating 113 deg F Ambient
Voltage Rating 115 VAC
Voltage Rating 115 VAC
Series CMBE
Frequency Rating 50 Hz
Series CMBE
Phase 1 ph
Material 304 Stainless Steel
Mounting Type Horizontal
Motor Speed 360 to 4000 rpm
Material 304 Stainless Steel
Outlet Size 1 in NPT
Type Compact Multi-Stage
Impeller Type (5) 304 Stainless Steel
Enclosure Type IP55
Mounting Type Horizontal
Motor Speed 360 to 4000 rpm
Outlet Size 1 in NPT
Phase 1 ph
Enclosure Type IP55
Frequency Rating 50 Hz
Temperature Rating 113 deg F Ambient
Inlet Size 1 in NPT
Inlet Size 1 in NPT
Flow Rate 8.81 gpm
Brand Grundfos
