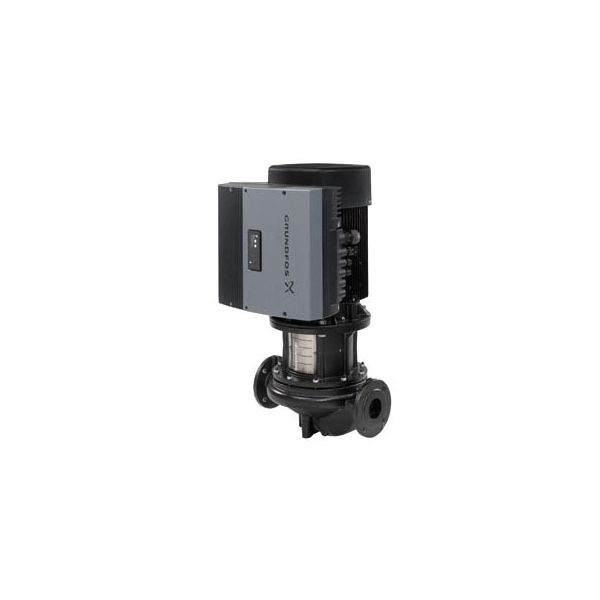

Grundfos 99430163
TPE50-240/2 240/3PH PUMP
SKU
890081
Grundfos Vertical Circulator Pump, In-Line Direct-Coupled Electronic Speed-Controlled, Series: TPE 2000, 300 gpm Flow Rate, 50 mm Inlet, 50 mm Outlet, 240 dm Maximum Head, 200 to 240 VAC, 60 Hz Frequency, 3 ph ph, 145 psi Maximum, 3600 rpm Motor, 304 Stainless Steel Impeller, Flange Mounting, 104 deg F Ambient, Totally Enclosed Fan Cooled Enclosure, Cast Iron
- TPE motors have a built-in frequency converter, allowing different control methods to be employed
- TPE pumps offer benefits with respect to energy savings and increased comfort
- Optimized hydraulics for high efficiency
- Reduced power consumption
- Top-pull-out design
- Easy dismantling for service
- Unlike end-suction pumps, in-line pumps allow the use of straight pipe work, which often results in reductions in installation cost and amount of space occupied
- The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals
- Pump housing and pump head/motor stool are electro-coated
- Improved corrosion resistance
- Industry standard flange-to-flange dimensions for easy retrofit applications
- Stainless steel impeller and seal ring for extended pump life
- ANSI/US flange
- Basic material version
- Rubber bellows seal, tungsten carbide rotating face, carbon/synthetic resin-impregnated stationary seat and EPDM secondary seal
| Frequency Rating | 60 Hz |
|---|---|
| Material | Cast Iron |
| Flow Rate | 300 gpm |
| Impeller Type | 304 Stainless Steel |
| Mounting Type | Flange |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Type | In-Line Direct-Coupled Electronic Speed-Controlled |
| Series | TPE 2000 |
| Temperature Rating | 104 deg F Ambient |
| Phase | 3 ph |
| Voltage Rating | 200 to 240 VAC |
| Maximum Pressure | 145 psi |
| Maximum Head | 240 dm |
| Motor Speed | 3600 rpm |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Brand | Grundfos |
