State Industries 100121943
ASME TANK,SELF CLEANING COMMER
SKU
826153

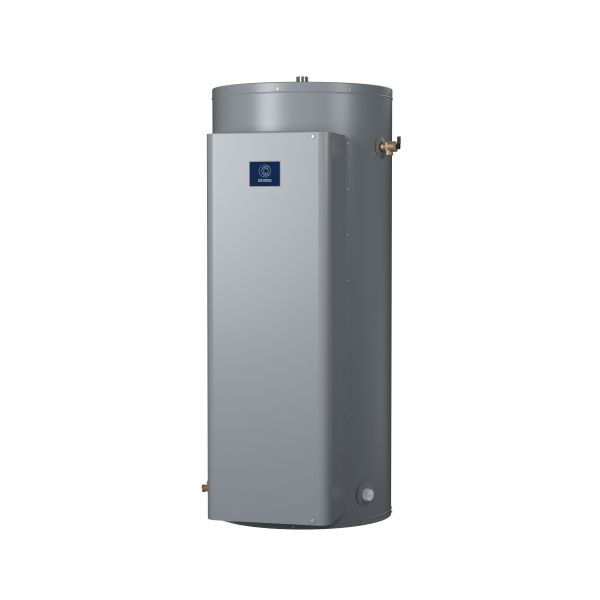

State Industries Electric Water Heater, Series: SANDBLASTER® CSB-SFE, 184302 Btu/hr Heating, 80 gal Tank, 208 VAC, 149.9 A Full Load, 54000 W, 3 ph, 1-1/4 in NPT Water Connection, (9) Goldenrod® 24K Gold Plated Heating Element, 738 gph at 30 deg F Rise Recovery, 150 psi, 120 to 181 deg F, Tall Tall or Short, ASME Yes/No: No, Baked Enamel, 25-1/2 in Dia x 60-1/4 in H
- Goldenrod elements provide long life with superior scaling resistance
- Glass lined tank interior is coated with glass specially developed by State for water heater use
- Fusing protects all elements, thermostat and internal wiring circuits against excess current flow
- Factory installed terminal block
- One temperature control (adjustable through a range of 120 to 181 deg F) and manual reset high temperature cut-off per element
- Simplified circuitry, color coded for ease of service
- 2 anode rod for maximum corrosion protection
- Cabinet has bonderized undercoat with baked enamel finish
- Bottom inlet and top outlet openings
- Brass drain valve
- Single panel control box
- Foam insulation reduces costly heat loss
- Surface mounted thermostat
| Series | SANDBLASTER® CSB-SFE |
|---|---|
| Water Connection | 1-1/4 in NPT |
| Tank Capacity | 80 gal |
| Pressure Rating | 150 psi |
| Voltage Rating | 208 VAC |
| Heating Element | (9) Goldenrod® 24K Gold Plated |
| Heating Capacity | 184302 Btu/hr |
| Phase | 3 ph |
| Tall or Short | Tall |
| Amperage Rating | 149.9 A Full Load |
| Finish | Baked Enamel |
| Power Rating | 54000 W |
| Recovery Rate | 738 gph at 30 deg F Rise |
| Dimensions | 25-1/2 in Dia x 60-1/4 in H |
| Temperature Rating | 120 to 181 deg F |
| ASME Yes/No | No |
| Brand | State |
