Lochinvar CHX03005A
LOCHINVAR 208V 3KW 5GAL ASME
SKU
866675

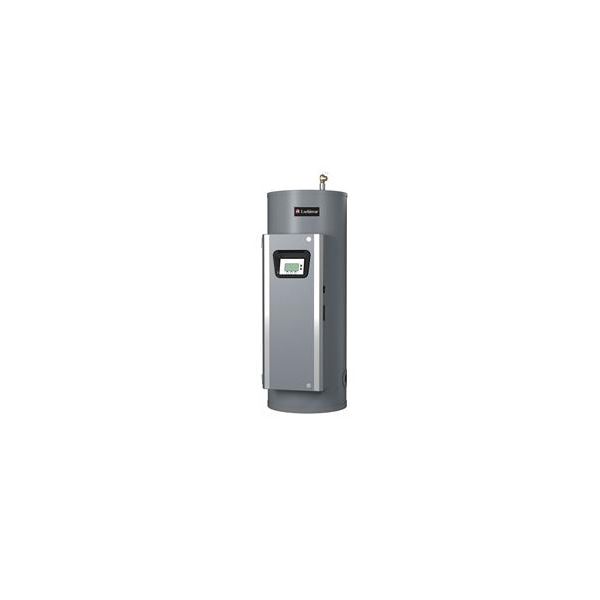

Lochinvar® Electric Water Heater, Compact, Series: Hi-Power® CHX, 102390 Btu/hr Heating, 5 gal Tank, 480 VAC, 3.6 A, 3000 W, 3 ph, 3/4 in NPT Water Connection, Incoloy® Sheathed Heating Element, 41 gph at 30 deg F Rise Recovery, 150 psi, 180 deg F, ASME Yes/No: Yes, Steel, 16-1/4 in Dia x 20-1/2 in H
- Advanced electronic controls
- Durable fused glass lining steel tank
- Factory installed temperature and pressure relief valve
- Non-CFC foam insulation
- Hinged access door
- Immersion thermostat with contactors
| Temperature Rating | 180 deg F |
|---|---|
| Power Rating | 3000 W |
| Heating Capacity | 102390 Btu/hr |
| Recovery Rate | 41 gph at 30 deg F Rise |
| Dimensions | 16-1/4 in Dia x 20-1/2 in H |
| Phase | 3 ph |
| Material | Steel |
| Voltage Rating | 480 VAC |
| Pressure Rating | 150 psi |
| Series | Hi-Power® CHX |
| Type | Compact |
| Heating Element | Incoloy® Sheathed |
| ASME Yes/No | Yes |
| Amperage Rating | 3.6 A |
| Water Connection | 3/4 in NPT |
| Tank Capacity | 5 gal |
| Brand | Lochinvar LLC |
