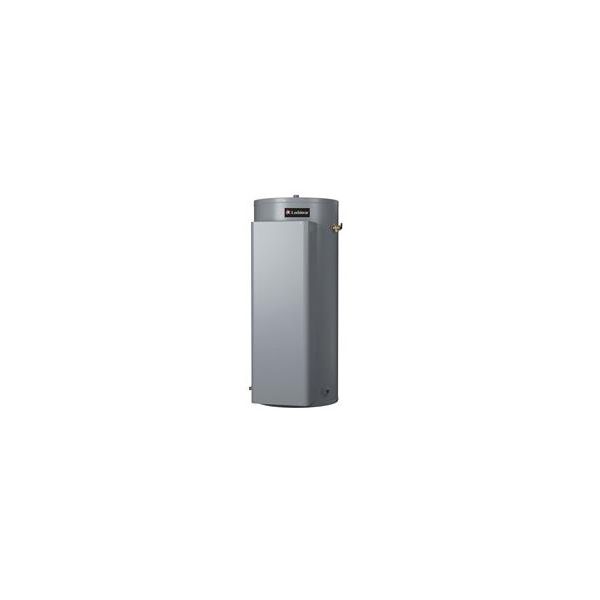

Lochinvar HSX09080
LOCHINVAR 80GAL 208V 9KW
SKU
887257
Lochinvar® Electric Water Heater, Standard, Series: Hi-Power® HSX, 80 gal Tank, 480 VAC, 10.8 A, 9000 W, 3 ph, 1-1/4 in Water Connection, (3) Plated Incoloy® Heating Element, 37 gph at 100 deg F Rise Recovery, 150 psi, 180 deg F, ASME Yes/No: Yes, Steel, 25-1/2 in Dia x 60-1/4 in H
- Durable fused glass lining steel tank
- Factory installed temperature and pressure relief valve
- Non-CFC foam insulation
- Hinged access door
| Temperature Rating | 180 deg F |
|---|---|
| Power Rating | 9000 W |
| Recovery Rate | 37 gph at 100 deg F Rise |
| Dimensions | 25-1/2 in Dia x 60-1/4 in H |
| Phase | 3 ph |
| Material | Steel |
| Voltage Rating | 480 VAC |
| Pressure Rating | 150 psi |
| Series | Hi-Power® HSX |
| Type | Standard |
| Heating Element | (3) Plated Incoloy® |
| ASME Yes/No | Yes |
| Amperage Rating | 10.8 A |
| Water Connection | 1-1/4 in |
| Tank Capacity | 80 gal |
| Brand | Lochinvar LLC |
