A.Y. McDonald 5182-028
LF 3/4"CCX3/4"COMP CORP.STOP
SKU
572317

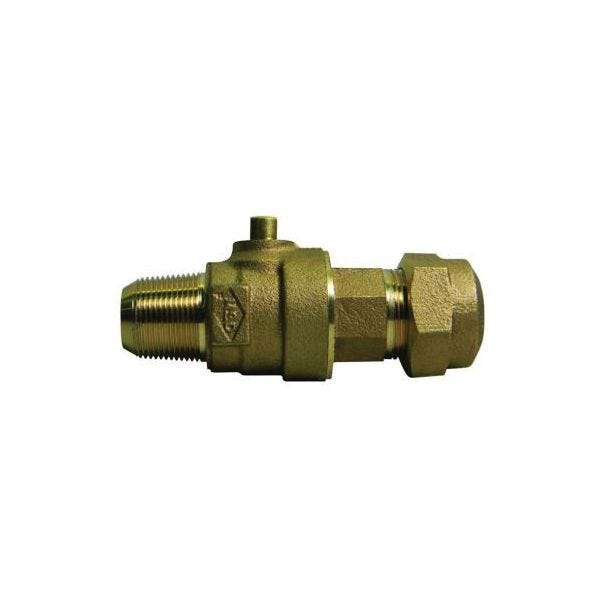

A.Y. McDonald Ball Corporation Stop, 3/4 in Nominal, AWWA/CC x Q CTS Compression, 300 psi, Full Port, Media: Water, Brass Ball, 1.39 in Top to Inlet Center, Brass Body, EPDM Softgoods, 3/4 in Dia
- Blow-out proof EPDM port seals
- End piece joint sealed with an EPDM O-Ring and thread locker
- Insert stiffeners are required on all flexible plastic connections
- PTFE coated brass ball rotates 360 deg
- EPDM O-ring/port seal
| Dimensions | 3/4 in Dia |
|---|---|
| Port Type | Full |
| Media | Water |
| End Style | AWWA/CC x Q CTS Compression |
| Ball Material | Brass |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Pressure Rating | 300 psi |
| Top to Inlet Center | 1.39 in |
| Softgoods Material | EPDM |
| Series | 74701BQ |
| Brand | A.Y. McDonald |
| Size | 3/4" |
| Type | Corporation Stops |
