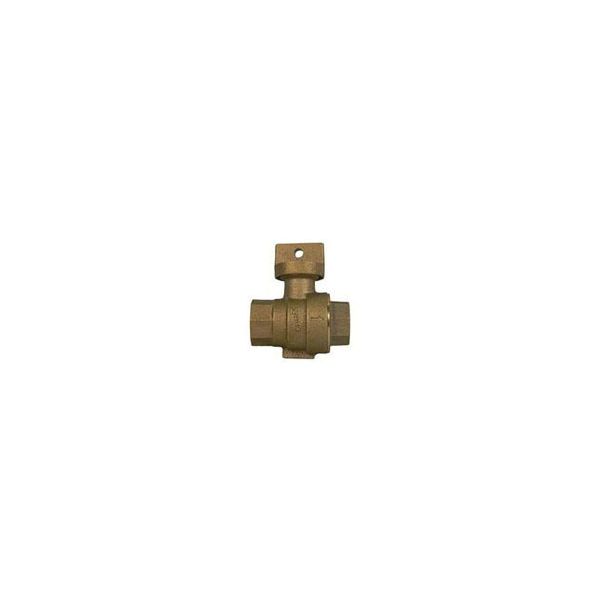

A.Y. McDonald 5131-250
LF 3/4"IPS BALL CURB STOP W/
SKU
572346
A.Y. McDonald Lead Free Stop and Drain Ball Style Curb Stop, 3/4 in Nominal, FNPT, 150 psig, Media: Water, PTFE Coated Brass Ball, 3.51 in Inlet to Outlet Length, 2.42 in Top to Inlet Center, EPDM O-Ring, Port Seal, 3/4 in Dia
- Blow-out proof EPDM port seals
- Joints sealed with thread locker
- All stop and drain ball valves are directional
- EPDM O-ring/port seal
| Dimensions | 3/4 in Dia |
|---|---|
| Media | Water |
| Inlet to Outlet Length | 3.51 in |
| End Style | FNPT |
| Ball Material | PTFE Coated Brass |
| Nominal Size | 3/4 in |
| Pressure Rating | 150 psig |
| Top to Inlet Center | 2.42 in |
| Softgoods Material | EPDM |
| Series | 76001 |
| Brand | A.Y. McDonald |
| Size | 3/4" |
| Type | Curb Stops |
