Mersen A2D8R
8A 250V FUSE TYPE RK1
SKU
880850

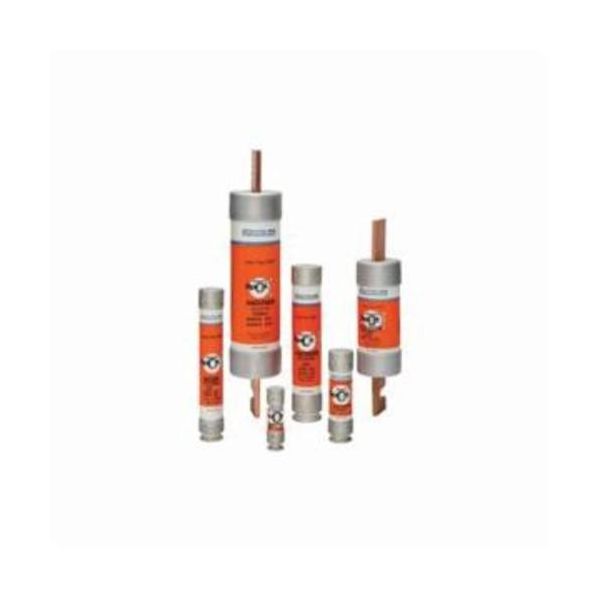

Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: A2D-R, Indicating, Rejection, 8 A, 250 VAC, 200 kA Interrupt, Class: RK1, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 9/16 in Dia x 2 in L Body
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush currents without nuisance opening
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns and "blackouts"
- Rejection style design prevents replacement errors (when used with recommended fuse blocks)
- High visibility orange label gives instant recognition
- Reduced inventory by taking the place of class RK5, K and H fuses
- Metal embossed date and catalog number for easier traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Plated terminals
- Tin-plated copper contact
| Class | RK1 |
|---|---|
| Body Size | 9/16 in Dia x 2 in L |
| Element | Dual |
| Material | Fiberglass |
| Series | A2D-R |
| Voltage Rating | 250 VAC |
| Indicating/Non-Indicating | Indicating |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage North American Time Delay |
| Body Type | Cylindrical |
| Amperage Rating | 8 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200 kA |
| Brand | Merson Fuses |
| Class | RK-1 |
