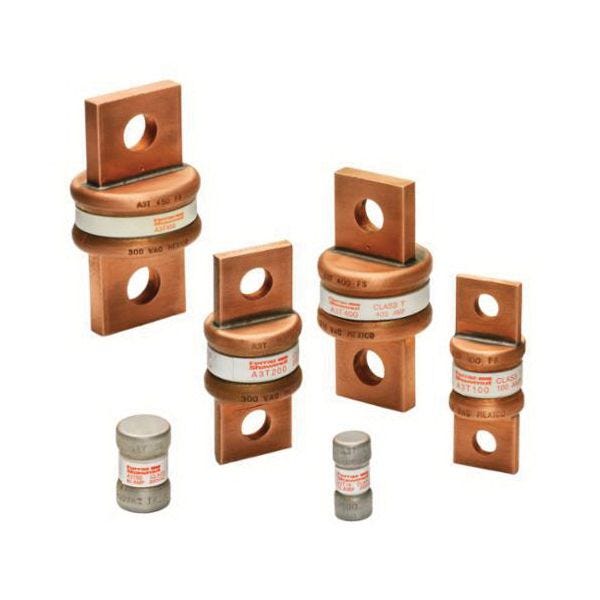

Mersen A6T25
25A 600V FUSE TYPE T
SKU
706614
Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: A6T, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 25 A, 600 VAC/300 VDC, 100/200 kA Interrupt, Class: T, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 0.57 in Dia x 1.5 in L Body Size
- Extremely current limiting for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Blade stamped catalog numbers for permanent identification
- Small physical size for greater design flexibility
- Copper contact
| Class | T |
|---|---|
| Body Size | 0.57 in Dia x 1.5 in L |
| Element | Single |
| Material | Fiber |
| Series | A6T |
| Voltage Rating | 600 VAC/300 VDC |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Body Type | Cylindrical |
| Amperage Rating | 25 A |
| Rejection/Non-Rejection | Non-Rejection |
| Interrupt Rating | 100/200 kA |
| Brand | Merson Fuses |
| Class | Class T |
