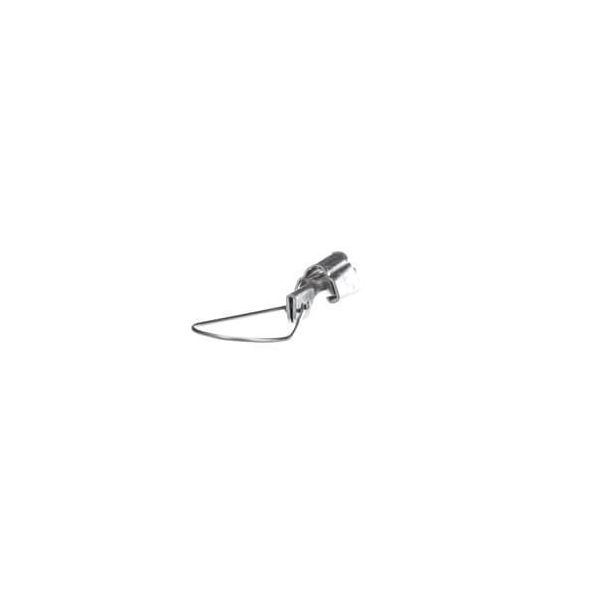

Blackburn W40-1
36617 AL WEDGE CLAMP
SKU
709085
Blackburn® Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D
- Drop wire may be cut to exact length for adjustments in drop wire sag
- Can be attached to bare neutral at any point in the span
- Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
- All seasons environmental conditions
- Saves conductor - drop wire may be cut to exact length
- Aluminum wedge and slider
- W40 series clamps rated 850 lb, ultimate tension for 1/0 AWG ASCR, AL or AAAC
| Color | Red |
|---|---|
| Dimensions | 12-3/4 in L x 2-3/8 in D |
| Specifications | 1-Conductor, Tension Connection |
| Conductor Size | 4/0 to 2/0 AWG |
| Voltage Rating | 35 kV |
| Conductor Type | ASCR/AAAC/Stranded |
| Series | W-1 |
| Material | Aluminum |
| Type | Type W |
| Finish | Bare |
| Brand | ABB |
