Juno IC20R
5" INCAND REMODLE IC HOUSING
SKU
704405

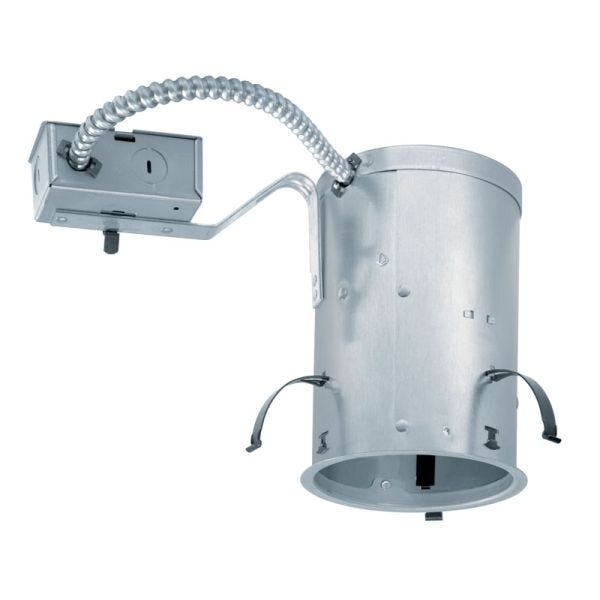

Juno® Air-Loc® Recessed Lighting Housing, Remodel Universal, 120 VAC, 5-1/2 in Ceiling Opening, Incandescent Lamp, 75 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: 5 in Trim, 5 in Dia, 7-1/2 in Height, 5-7/8 in Width, 12-1/2 in Depth, Aluminum Housing
- Drop socket with spring to accommodate various trim installations
- Medium base porcelain socket with nickel plated copper screw shell
- Shadow-free, knife edge trim design blends smoothly into the ceiling
- Thermally protected against improper use of lamps
- Pre-wired junction box includes (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
- UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors
- Installs through an opening in the ceiling from below
- Energy efficient, sealed housing
- Secured in place by factory installed remodel springs
- 22 ga die-formed galvanized steel mounting frame
- Remodel spring accommodate up to 1-1/8 in ceiling thickness
- A19/BR30/PAR20/PAR30/PAR30L/R20/R30 lamps
- Air-Loc® housing can be completely covered with insulation and stops infiltration and exfiltration of air, reducing heating and cooling costs
- IC20R remodel housing is ideal for applications where the backside of the ceiling is not accessible
- IC Air-Loc Remodel Housing
- Standard 120 V used in most residential applications
- Emergency battery back-up not included in this version
| Voltage Rating | 120 VAC |
|---|---|
| Width | 5-7/8 in |
| Ceiling Opening | 5-1/2 in |
| Suitable For Use With | 5 in Trim |
| Housing Material | Aluminum |
| Lamp Wattage | 75 W |
| Suitable For Use With | 5 in Trim |
| Suitable For Use With | 5 in Trim |
| Type | Remodel Universal |
| Diameter | 5 in |
| Lamp Type | Incandescent |
| Depth | 12-1/2 in |
| Number of Lamps | 1 |
| Mounting Type | Ceiling |
| Depth | 12-1/2 in |
| Insulation Type | IC |
| Height | 7-1/2 in |
| Height | 7-1/2 in |
| Height | 7-1/2 in |
| Brand | Juno |
