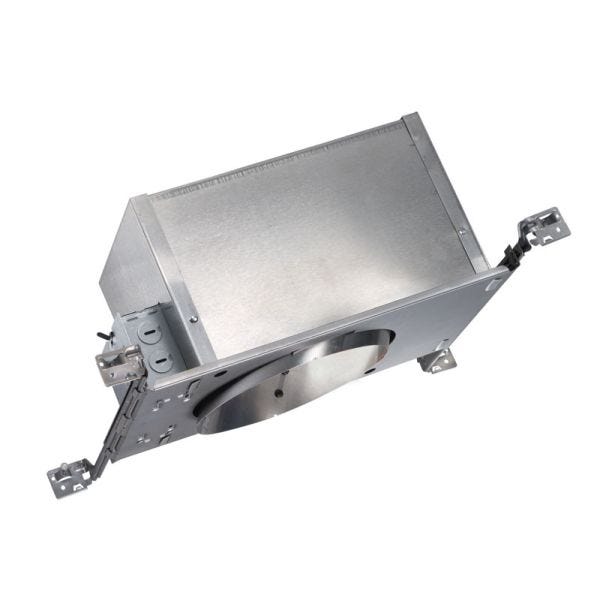

Juno IC928

Juno® Air-Loc® Recessed Lighting Housing, Sloped, 120 VAC, 6-9/16 x 8-7/32 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use With: 6 in Trim, 6 in Dia, 7-5/8 in Height, 13-1/2 in Width, 18-1/2 in Depth, Aluminum Housing

• Fully sealed Air-Loc® housing, double wall construction
• Oblique angle housing design holds trim flush with the ceiling
• Adjustable socket plate permits lamp to remain perpendicular to floor through entire pitch range
• Medium base porcelain socket with nickel plated copper screw shell
• Pre-wired junction box with (5) 1/2 in and (1) 3/4 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
• Angle-cut baffles ensure grooves remain parallel to the floor to provide proper optics
• UL listed, cUL, CSA certified for through branch wiring, maximum (8) 12 AWG 90 deg C branch circuit conductors
• Real Nail® 3 bar hangers telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
• Real Nail® 3 bar hangers feature patented break away bars for tight joist spacing
• Energy efficient, sealed inner housing
• When used with Air-Loc® gasket, stops infiltration and exfiltration of air, reducing heating and air cooling costs
• 22 ga die-formed galvanized steel mounting frame
• Inner housing is vertically adjustable to accommodate up to a 1 in ceiling thickness
• Access door for junction box accessibility
• For use in 7/12 to 12/12 (30 to 45 deg) pitch super slopes
• Oval ceil opening
• PAR16/PAR30/PAR38 lamps
• IC928 downlight is an IC-rated, double wall construction housing for use in 7/12- to 12/12-pitch slopes, 30- to 45 deg , can be completely covered with insulation
• Standard 120 V used in most residential applications
• Emergency battery back-up not included in this version
