Juno TC1R

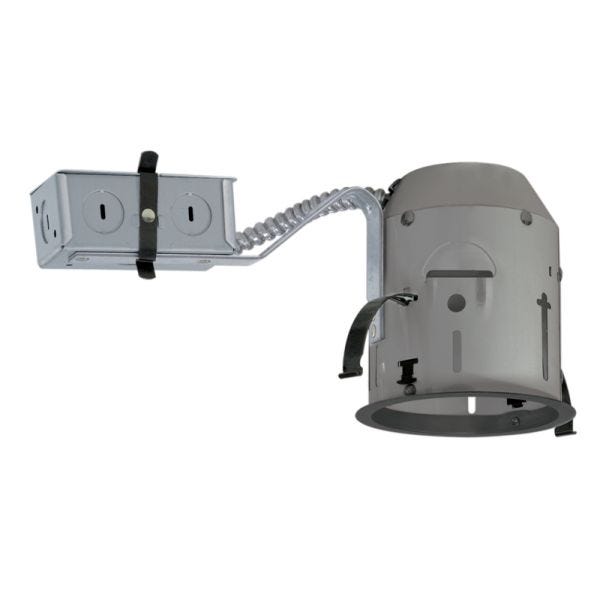

Juno® Recessed Lighting Housing, Adjustable Miniature Remodel Universal, Series: TC Series, 120 VAC, 4-3/8 in Ceiling Opening, Incandescent Lamp, 75 W Lamp, 1 Lamps, Non-IC Insulation, Ceiling Mount, For Use With: 4 in Round/Square Trim, 4 in Dia, 5-1/4 in Height, 4-3/4 in Width, 11-1/2 in Depth, Steel Housing

• Steel housing is fully assembled for ease of installation
• Pre-wired junction box with (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire
• Shadow-free, knife edge trim design blends smoothly into the ceiling
• UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG minimum 90 deg C branch circuit conductors
• Thermally protected against improper use of lamps or insulation
• Installs through an opening in the ceiling from below
• Secured in place by factory installed remodel springs
• Design for use in non-insulated areas
• If installed where insulation is present, the insulation must be pulled back 3 in from all sides of the TC housing
• Remodel springs accommodate up to a 1-1/8 in ceiling thickness
• R14/R16/R20/PAR16/PAR20 lamps
• The TC1R remodel downlight can be installed from below the ceiling
• Housings include medium base porcelain socket with nickel-plated copper screw shell
• Standard 120 V used in most residential applications
• Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs
• Emergency battery back-up not included in this version
