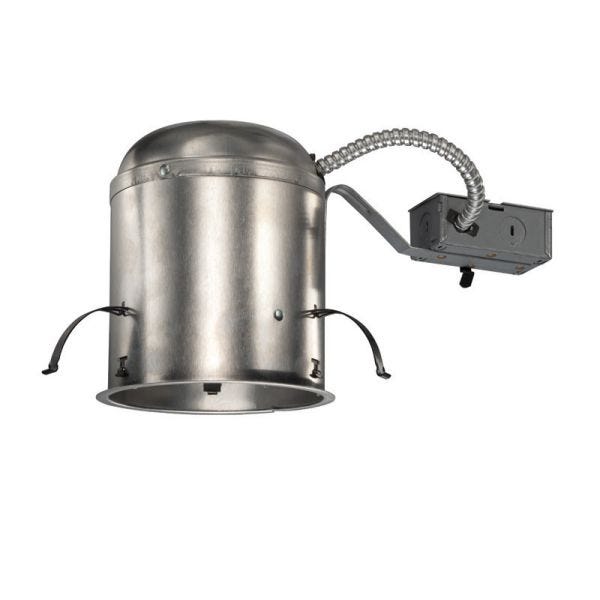

Juno V6ICR W
6" IC REMODEL HOUSING
SKU
704253
Juno®, V6ICR W, Downlight Housing, Adjustable Remodel Round, Series: V6ICR, 120 VAC, 6-1/4 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, Non-Insulated Insulation, Ceiling Mounting, For Use With: Downlight Trim, 6 in Diameter, 7-3/8 in Height, 13-3/4 in Width, 6-3/4 in Depth, Aluminum Housing Material
- IC Air-Loc® remodel housing with all 6 in trims
- Junction box provided with removable access plate, (5) 1/2 in knockouts and (4) non-metallic sheathed cable connectors and ground wire
- Knockouts equipped with pryout slots
- Remodel springs accommodate up to a 1-1/8 in ceiling thickness
- PAR30/PAR30L/BR30/R20/PAR20 lamps
- Energy efficient, sealed housing
- Can be completely covered with insulation
- Includes (3) Air-Loc® tape strips to cover remodel springs after installation
- IC remodel housing for remodel application where back side of ceiling is not accessible
- Installs through an opening in the ceiling from below
- Secured in place by factory installed remodel springs
- Product thermally protected against improper use of lamps
- Pre-wired junction box, UL/cUL listed for through branch wiring, maximum (4) 12 AWG 90 deg C branch circuit conductors
| Voltage Rating | 120 VAC |
|---|---|
| Width | 13-3/4 in |
| Ceiling Opening | 6-1/4 in |
| Suitable For Use With | Downlight Trim |
| Housing Material | Aluminum |
| Lamp Wattage | 90 W |
| Suitable For Use With | Downlight Trim |
| Suitable For Use With | Downlight Trim |
| Type | Adjustable Remodel Round |
| Diameter | 6 in |
| Lamp Type | Incandescent |
| Series | V6ICR |
| Depth | 6-3/4 in |
| Number of Lamps | 1 |
| Mounting Type | Ceiling |
| Depth | 6-3/4 in |
| Insulation Type | Non-Insulated |
| Height | 7-3/8 in |
| Height | 7-3/8 in |
| Height | 7-3/8 in |
| Brand | Juno |
