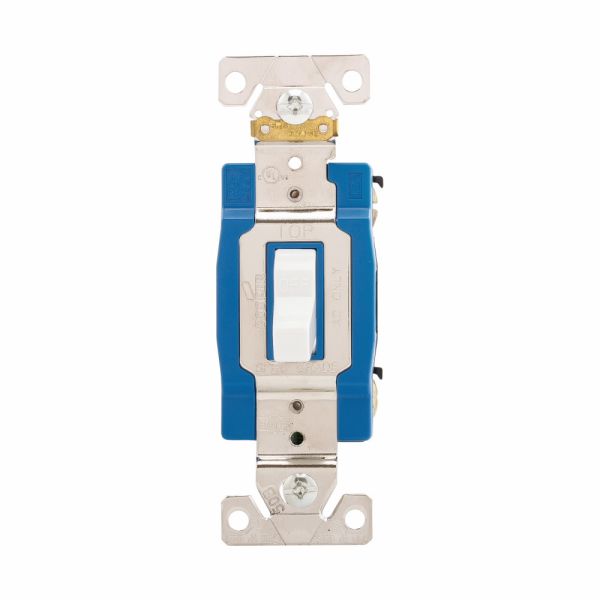

EATON AH1201W
INDUSTRIAL GRADE 15A SW
SKU
676554
EATON Arrow Hart Toggle Switch, Automatic Grounding Premium Specification Grade, 120/277 V, 15 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, White, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in W x 1.05 in D x 3.28 in H Dimensions
- 14 to 10 AWG terminal accommodation
- 2.4 in L screw to screw
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
| Dimensions | 1.31 in W x 1.05 in D x 3.28 in H |
|---|---|
| Power Rating | 1/2 hp |
| Voltage Rating | 120/277 V |
| Operating Cycles | 30000 Cycles |
| Mounting | Wall |
| Environmental Conditions | -4 to 140 deg F Operating Temperature |
| Color | White |
| Type | Automatic Grounding Premium Specification Grade |
| Number of Poles | 1 |
| Material | Polycarbonate |
| Terminal Type | Screw |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Brand | Eaton |
| Amperage | 15 Amp |
| Type | Toggle |
| Voltage | 120/277V |
