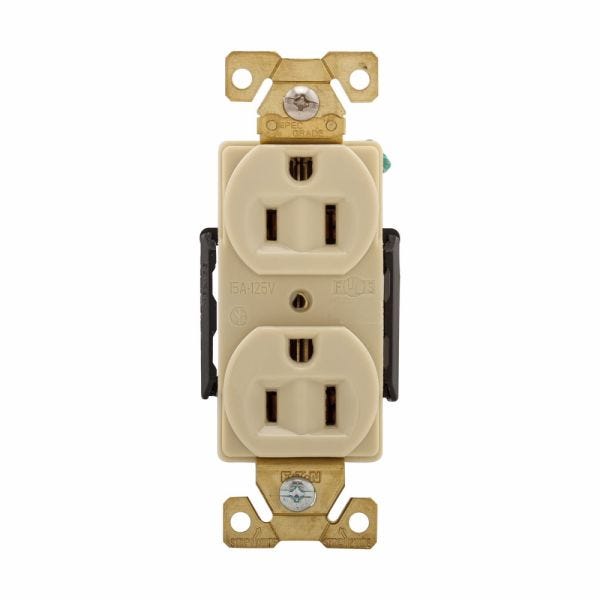

EATON AH5262V
GRD DPLX RCP-NEMA5-15R
SKU
700283
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Premium, Series: AH5262, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Ivory, 4.19 in H x 1.32 in W x 0.88 in D Dimensions
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
- Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
- 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
- Nylon face, glass filled nylon base
- Flush mounting
- 14 to 10 AWG wire terminal
| Dimensions | 4.19 in H x 1.32 in W x 0.88 in D |
|---|---|
| Amperage Rating | 15 A |
| Color | Ivory |
| Grade | Industrial/Specification |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Glass Filled Nylon |
| Temperature Rating | -4 to 158 deg F |
| Number of Poles | 2 |
| Type | Duplex Premium |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | Screw |
| Series | AH5262 |
| Brand | Cooper Wiring Devices |
| Color | Ivory |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 15A |
| Number | Duplex |
