EATON AH5352LA
DUPLEX REC LIGHT AL
SKU
903014

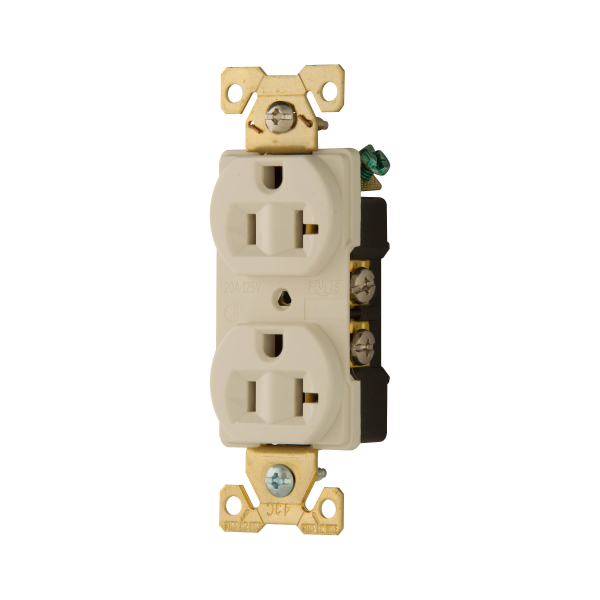

EATON Arrow Hart® Straight Blade Receptacle, Auto Grounding Duplex/Single Standard, Series: AH5352, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20R, Industrial/Specification Grade, -20 to 70 deg C, Back and Side Wired/Screw Terminal, Glass Filled Nylon, Light Almond, 4.19 in H x 0.88 in D
- Brass contacts
- Flush mounting
- Nylon face, glass filled nylon base
| Dimensions | 4.19 in H x 0.88 in D |
|---|---|
| Amperage Rating | 20 A |
| Color | Light Almond |
| Grade | Industrial/Specification |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon |
| Temperature Rating | -20 to 70 deg C |
| Number of Poles | 2 |
| Type | Duplex |
| NEMA Rating | NEMA 5-20R |
| Terminal Type | Screw |
| Series | AH5352 |
| Brand | Eaton |
| Color | Light Almond |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 20A |
| Number | Duplex |
