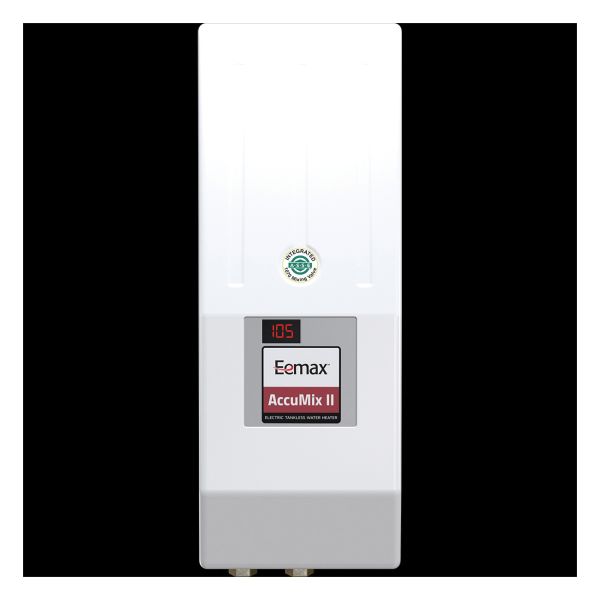

Eemax AM007240T
EEMAX ACCUMIX II 240V,6.5KW
SKU
873898
Eemax™ Electric Tankless Water Heater, Multi-Directional Feed, Series: AccuMix II™, 240 V, 27 A, 6.5 kW, 1 ph, 2.5 gpm, 3/8 in Compression Water Connection, Nickel Chrome Heating Element, 0.95, 10 AWG Wire, Wall Mount, 35 to 150 psi Dynamic, 105 to 110 deg F, ASME Yes/No: No, ABS, White, 5-1/4 in W x 4 in D x 13-3/4 in H, Commercial/Residential/Dual: Commercial, Domestic
- Endless hot water for sensor or metering faucets
- Unit meets UPC 407.3 requirements when properly installed
- Self-diagnostics with intelligent controls actively protect heater in installed environment
- SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
- Mounts in any orientation for a flexible installation
- Integrated ASSE 1070 rated mixing valve for code compliant hand washing
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - No storage capacity to deplete
- Reduces installation cost and material - No T and P valve required
- Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
- Easy Installation - Simple NPT fittings that require no soldering
- Unit mounts directly to the wall with common hardware
- Replaceable nickel chrome bare wire cartridge
- Without thermostat
- For pre-heated or cold water feed
| Series | AccuMix II™ |
|---|---|
| Phase | 1 ph |
| Heating Element | Nickel Chrome |
| Energy Factor | 0.95 |
| Voltage Rating | 240 V |
| Mounting Type | Wall |
| Pressure Rating | 35 to 150 psi Dynamic |
| Wire Size | 10 AWG |
| Type | Multi-Directional Feed |
| Amperage Rating | 27 A |
| Material | ABS |
| Water Connection | 3/8 in Compression |
| Domestic/Import | Domestic |
| Commercial/Residential/Dual | Commercial |
| ASME Yes/No | No |
| Color | White |
| Dimensions | 5-1/4 in W x 4 in D x 13-3/4 in H |
| Flow Rate | 2.5 gpm |
| Temperature Rating | 105 to 110 deg F |
| Power Rating | 6.5 kW |
| Brand | Eemax |
| Voltage | 240V |
