American Standard 6064013.002
0.125 SELECTRONIC UR FV
SKU
889657

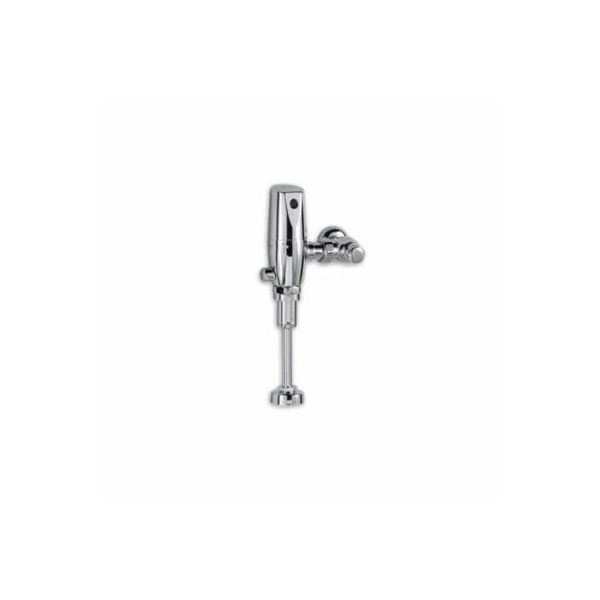

American Standard Flush Valve, Exposed Sensor-Operated, Selectronic® Collection, Urinal Fixture, PWRX™ Battery Power Source, 0.25 gpf Flush, 3/4 in Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Piston Operated Valve Design, 15-3/4 to 31-1/2 in Sensor, 20 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Import
- Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure
- Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
- Dezincification-resistant semi-red brass alloy
- Selectronic® proximity system with universal sensor provides hygienic, hands-free operation
- State-of-the-Art electronics prevent ghost flushing
- Fully mechanical manual override button can flush the valve without power
- Fail-safe - valve automatically closes upon loss of power or water pressure and does not need to be reset
- Safety circuitry prevents overheating of the battery in case of short circuit, protecting the electronics
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
- High back pressure vacuum breaker
- Range can be adjusted manually
- No external volume adjustment
- Flow requirement - 10 gpm
- Stadium feature - valve automatically switches to water savings mode during periods of heavy usage
- 20 psi flowing pressure
- 80 psi static
| Power Source | PWRX™ Battery |
|---|---|
| Flush Rate | 0.25 gpf |
| Domestic/Import | Import |
| Inlet Size | 3/4 in |
| Collection | Selectronic® |
| Valve Design | Piston Operated |
| Type | Exposed Sensor-Operated |
| Spud Coupling | 3/4 in |
| Sensor Range | 15-3/4 to 31-1/2 in |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 20 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | American Standard |
