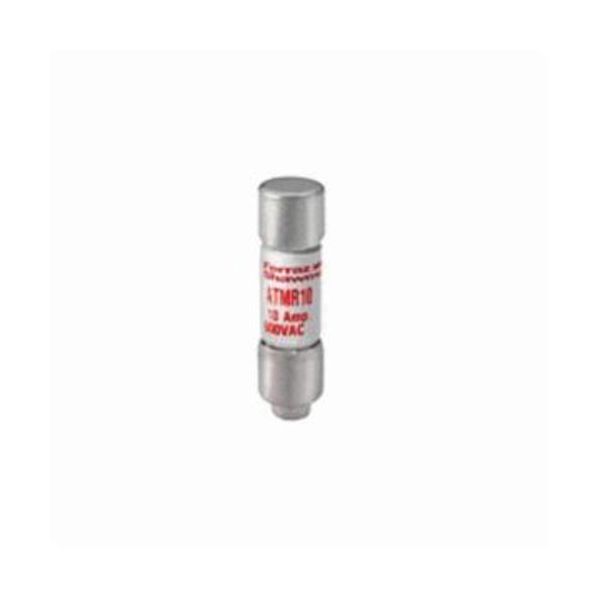

Mersen ATMR3/10
3/10A 600V FUSE CLASS CC
SKU
706634
Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: ATMR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 0.3 A, 600 VAC/VDC, 200/100 kA Interrupt, Class: CC, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
- Rejection style design prevents replacement errors when used with recommended fuse blocks
- Fiberglass body provides dimensional stability in harsh industrial environments
- Versatile design for individual component and branch circuit protection
- Tin-plated copper contact
- North American power fuses
| Class | CC |
|---|---|
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Element | Single |
| Material | Fiber |
| Series | ATMR |
| Voltage Rating | 600 VAC/VDC |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Body Type | Cylindrical |
| Amperage Rating | 0.3 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200/100 kA |
| Brand | Merson Fuses |
| Class | CC |
