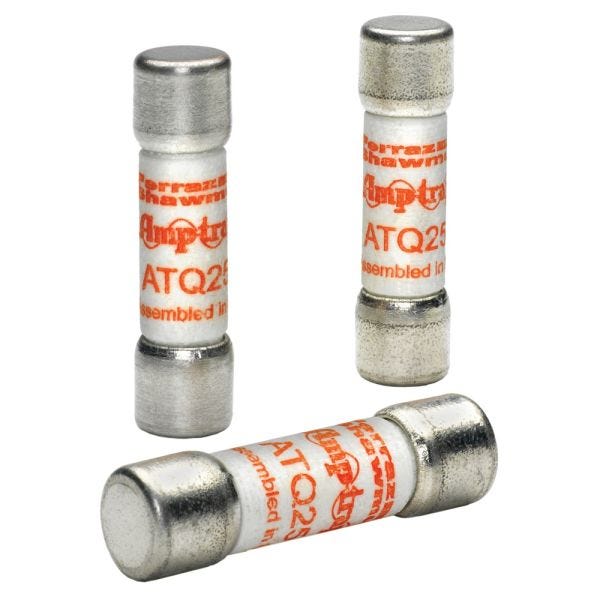

Mersen ATQ30
30A 500V FUSE TD MIDGET
SKU
706655
Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 500 VAC, 10 kA Interrupt, Class: Midget, 6.8 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
- Numerous ratings for a wide variety of applications up to 500 VAC
- Time-delay (12 sec at 200% rating) for circuits with high inrush current
- Tin-plated copper contact
- Can be used with UltraSafe™ fuse holders
| Interrupt Rating | 10 kA |
|---|---|
| Series | ATQ |
| Body Type | Cylindrical |
| Amperage Rating | 30 A |
| Response Time | 6.8 s |
| Type | Low Voltage |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Terminal Type | Ferrule |
| Material | Fiber |
| Class | Midget |
| Voltage Rating | 500 VAC |
| Mounting Type | Clip |
| Indicating/Non-Indicating | Non-Indicating |
| Element | Dual |
| Rejection/Non-Rejection | Non-Rejection |
| Brand | Merson Fuses |
| Voltage | 500V |
