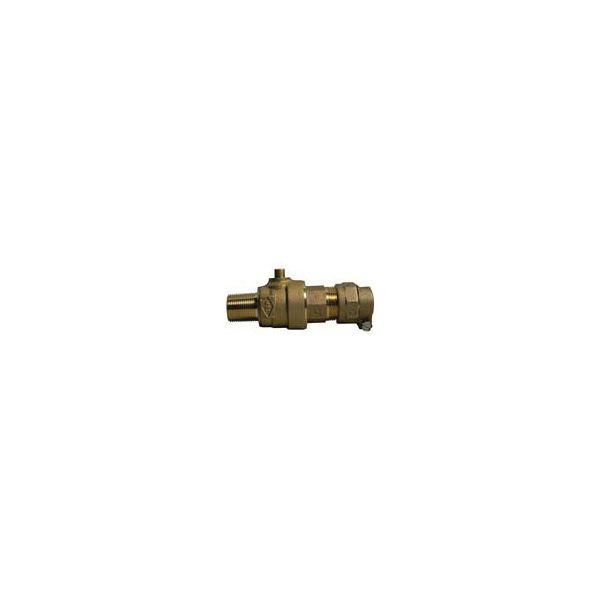

A.Y. McDonald 5142-330
LF 11/4" PEP-7 X MIP CURB STOP
SKU
893556
A.Y. McDonald Ball Style Corporation Stop, 1-1/4 in Nominal, IPS PEP COMP x MNPT, 300 psig, Full Port, PTFE Coated Brass Ball, 1.88 in Top to Inlet Center, Brass Body, EPDM Softgoods
- Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
- Blow-out proof EPDM port seals
- End piece joint sealed with an EPDM O-Ring and thread locker
- Insert stiffeners are required on all flexible plastic connections
- PTFE coated brass ball rotates 360 deg
- Operating head: standard
- Pep -33 Mac-Pak compression
- EPDM O-ring/port seal
| Port Type | Full |
|---|---|
| End Style | IPS PEP COMP x MNPT |
| Ball Material | PTFE Coated Brass |
| Body Material | Brass |
| Nominal Size | 1-1/4 in |
| Pressure Rating | 300 psig |
| Top to Inlet Center | 1.88 in |
| Softgoods Material | EPDM |
| Series | 74704B-33 |
| Brand | A.Y. McDonald |
| Size | 1-1/4" |
| Type | Curb Stops |
