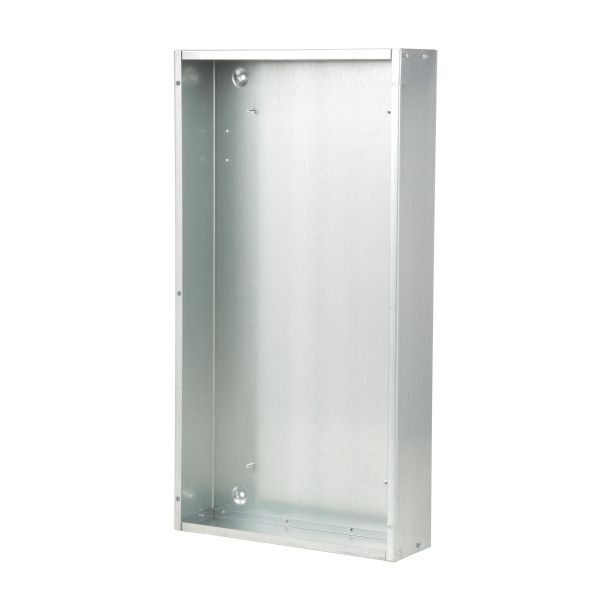

Siemens, B38, Panelboard Box, Type 1, 20 in Width, 5-3/4 in Depth, 38 in Height, 16 ga Gauge, Surface Mounting, Steel, NEMA 1 NEMA Rating
- Base box size requirements for P2 panels with standard line lugs, and fewer than 55 poles of 1 in module (BL, BQD, ED, xGB) branch breakers and provisions
- Unit spaces range from 9 in to 45 in (in 6 in increments)
- Boxes range from 26 in to 74 in high (in 6 in increments)
- Inclusion of optional modifications may require size increases that must be added to these base values to calculate the final box size for the panel
- Indoor enclosure
- Without ground bus enclosure
- For use with P2 Panelboard kit
| Type | Type 1 |
|---|---|
| Gauge | 16 ga |
| Mounting Type | Surface |
| Depth | 5-3/4 in |
| Height | 38 in |
| Width | 20 in |
| NEMA Rating | NEMA 1 |
| Material | Steel |
| Brand | Siemens Ind |
