Bell & Gossett 101237LF
LF 1 SWT CHECK-TROL FLNG SET
SKU
559380

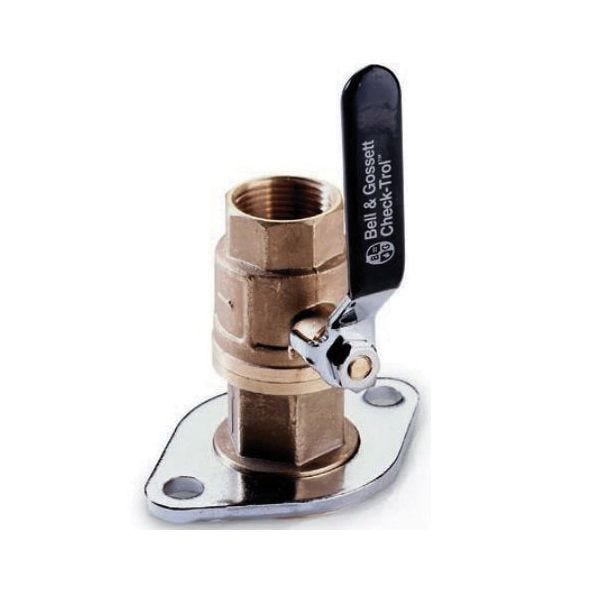

Bell & Gossett Check-Trol™ Isolation Flow Control Flange, 1 in Nominal, C, 150 psig, 200 deg F, Handle Actuator, Brass Body, Brass Trim, PTFE Packing Seat Ring, Polished Chrome, 4-7/16 in Flange, 3 in Inlet to Outlet Length x 2-5/32 in Top to Inlet Center Valve
- Combines three valves in one-isolation valve, check valve and companion flange
- Free floating flange allows easy alignment and installation of pumps
- Prevents gravity circulation
- Isolates the circulator so you don't need to drain the entire system
- 50 state lead free compliant
- Suitable for use with Model NRF/NBF/SSF, Series PL-30, PL-36, PL-55, Series 100, PR, and LR B and G circulators
- Contains less than 0.25% Lead content by weight on wetted surface
- Construction: lead free brass valve body, chrome plated steel flange and lead-free brass ball, nitrile/acetal/stainless steel spring check
| Pressure Rating | 150 psig |
|---|---|
| Nominal Size | 1 in |
| Finish | Polished Chrome |
| Dimensions | 4-7/16 in Flange, 3 in Inlet to Outlet Length x 2-5/32 in Top to Inlet Center Valve |
| Body Material | Brass |
| Softgoods Material | PTFE Packing Seat Ring |
| Trim Material | Brass |
| Actuator Type | Handle |
| Temperature Rating | 200 deg F |
| End Style | C |
| Brand | Bell & Gossett |
