Bell & Gossett 103316LF
LF NBF-18S BRONZE PUMP SWEAT 1/2
SKU
262801

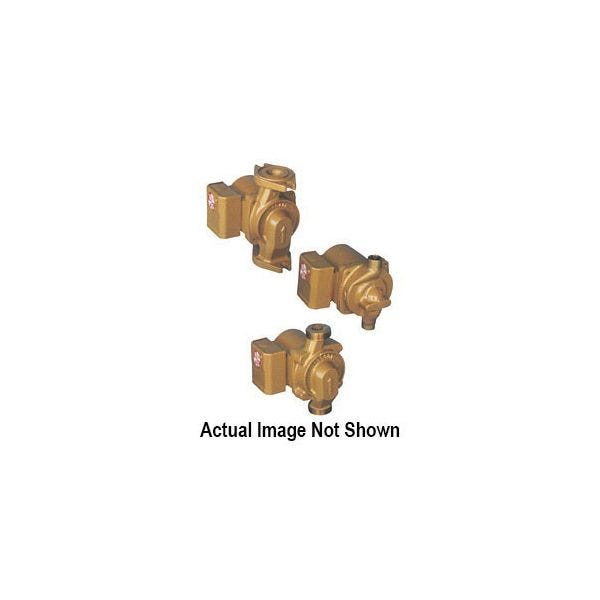

Bell & Gossett Wet Rotor Circulating Pump, Series: NBF-18S, 15 gpm, 16 ft Maximum Head, 90 W, 115 VAC, 0.74 A, 60 Hz, 1 ph, 150 psi Maximum, 3000 rpm Motor, Noryl® Impeller, 230 deg F, 4-7/8 in W x 5-7/32 in D x 5 in H
- Lead-free bronze pump body
- Pumps shall have a ceramic shaft supported by carbon bearings
- Ceramic shaft
- Contains less than 0.25% Lead content by weight on wetted surfaces
- 40 deg F minimum operating temperature
- 1/2 in C
- Model NBF-18S
| Amperage Rating | 0.74 A |
|---|---|
| Frequency Rating | 60 Hz |
| Flow Rate | 15 gpm |
| Impeller Type | Noryl® |
| Series | NBF-18S |
| Temperature Rating | 230 deg F |
| Phase | 1 ph |
| Dimensions | 4-7/8 in W x 5-7/32 in D x 5 in H |
| Voltage Rating | 115 VAC |
| Maximum Pressure | 150 psi |
| Power Rating | 90 W |
| Maximum Head | 16 ft |
| Motor Speed | 3000 rpm |
| Brand | Bell & Gossett |
