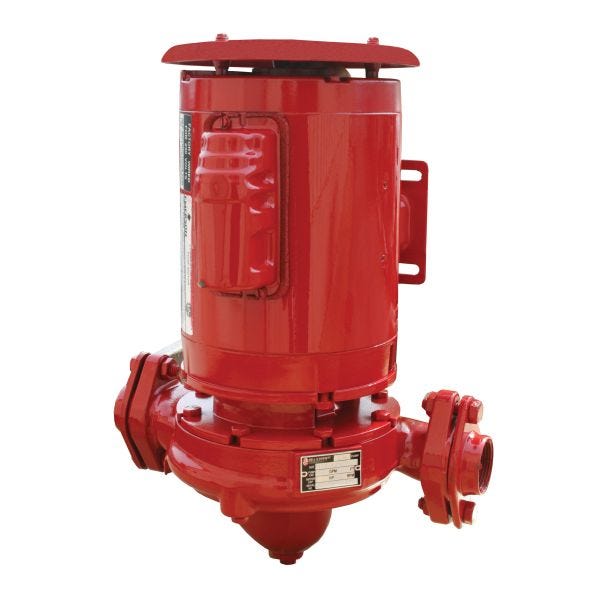

Bell & Gossett 179331LF
1-1/2HP 115/208-230 CIRC PUMP
SKU
906994
Bell & Gossett In-Line Centrifugal Pump, Small Close Coupled, Series: e-90, 1 in Inlet, 1 in Outlet, 115 ft Maximum Head, 1-1/2 hp, 208 to 230/115 V, 1 ph, 175 psi Maximum, 3450 rpm Motor, P2004348 4-1/4 in Impeller Impeller, Horizontal/Vertical Mount, -10 to 250 deg F, NEMA 56J ODP, Double Sealed Ball Bearing, 7-1/2 in W x 17-1/4 in H, Domestic
- Long life and robust performance
- Robust EPR/carbon/silicon-carbide mechanical seal
- Energy savings
- Increased hydraulic efficiency
- Space savings and installation flexibility close-coupled
- Ability to mount horizontally and vertically
- Ease of maintenance
- Premium efficiency pump
- All bronze construction
- Model number: e9021S
| Domestic/Import | Domestic |
|---|---|
| Impeller Type | P2004348 4-1/4 in Impeller |
| Mounting Type | Horizontal/Vertical |
| Enclosure Type | NEMA 56J ODP |
| Type | Small Close Coupled |
| Series | e-90 |
| Temperature Rating | -10 to 250 deg F |
| Phase | 1 ph |
| Dimensions | 7-1/2 in W x 17-1/4 in H |
| Voltage Rating | 208 to 230/115 V |
| Bearing Type | Double Sealed Ball |
| Maximum Pressure | 175 psi |
| Power Rating | 1-1/2 hp |
| Maximum Head | 115 ft |
| Motor Speed | 3450 rpm |
| Inlet Size | 1 in |
| Outlet Size | 1 in |
| Brand | Bell & Gossett |
