Bell & Gossett 1BL002
PL-45 1/6HP CI CIRC L/FLNGS
SKU
237455

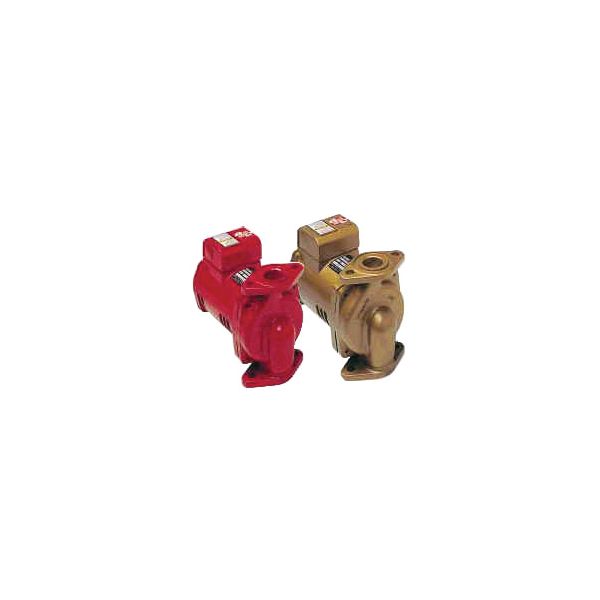

Bell & Gossett PL™ Booster Pump, Maintenance-Free, Series: PL Series, 1/6 hp Power, 115 VAC, 2.1 A, 60 Hz Frequency, 1 ph ph, 150 psi Maximum, 3300 rpm Motor, Glass-Filled Noryl® Impeller, In-Line Mounting, 225 deg F, Ball Bearing, 9-1/8 in L x 8-1/12 in W Dimensions
- Permanently lubricated
- Cast iron body
- PL boosters equipped with a drip-proof motor are recommended for indoor use only
- Bell & Gossett powerful, dry-motor design delivers exceptional performance
- 25 percent more efficient than competition
- Precision-machined and balanced alloy steel rotor for superior performance
- Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses
- XL-11™ Precision-crafted bearing system
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
- Double sided stainless steel neck ring for optimum efficiency
- 1, 1-1/4 and 1-1/2 in NPT flange
- Model PL-45
| Amperage Rating | 2.1 A |
|---|---|
| Maximum Pressure | 150 psi |
| Mounting Type | In-Line |
| Impeller Type | Glass-Filled Noryl® |
| Bearing Type | Ball |
| Motor Speed | 3300 rpm |
| Phase | 1 ph |
| Type | Maintenance-Free |
| Dimensions | 9-1/8 in L x 8-1/12 in W |
| Voltage Rating | 115 VAC |
| Frequency Rating | 60 Hz |
| Power Rating | 1/6 hp |
| Series | PL Series |
| Temperature Rating | 225 deg F |
| Brand | Bell & Gossett |
