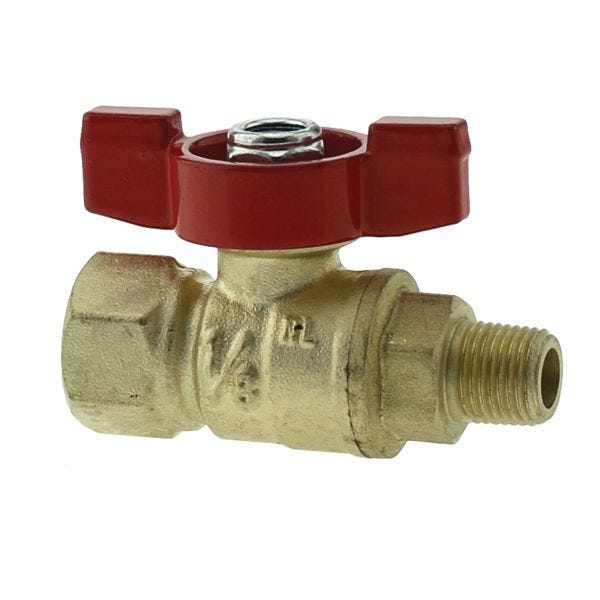

Boshart Industries 0828-01M01FNL
1/8" MPT X FPT BALL VALVE
SKU
663266
Boshart Industries Ball Valve, Lead Free Mini, Series: 0828NL Series, 1/8 in Nominal, MNPT x FNPT End Style, 600 psi CWP Pressure, Up to 180 deg F, Full Port, 0.3 in Orifice, T-Handle Actuator, Polished Chrome Brass Ball, 1.93 in Inlet to Outlet Length, 0.97 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/Rubber Softgoods, Import
- CWP - cold working pressure, is an indication of the pressure rating for valves at a temperature range of up to +100 deg F (37 deg C)
- Blow-out proof stem
- Red tee handle
- No lead <0.25% pb by weighted average
- Brass stem/PTFE seat
- PTFE stem packing/washer/rubber O-ring
| Ball Material | Polished Chrome Brass |
|---|---|
| Port Type | Full |
| Pressure Rating | 600 psi CWP |
| Series | 0828NL Series |
| Domestic/Import | Import |
| Actuator Type | T-Handle |
| Body Material | Forged Brass |
| Nominal Size | 1/8 in |
| Top to Inlet Center | 0.97 in |
| Inlet to Outlet Length | 1.93 in |
| Type | Mini |
| Trim Material | Brass/PTFE |
| End Style | MNPT x FNPT |
| Temperature Rating | Up to 180 deg F |
| Orifice Size | 0.3 in |
| Softgoods Material | PTFE/Rubber |
| Brand | Boshart Ind |
