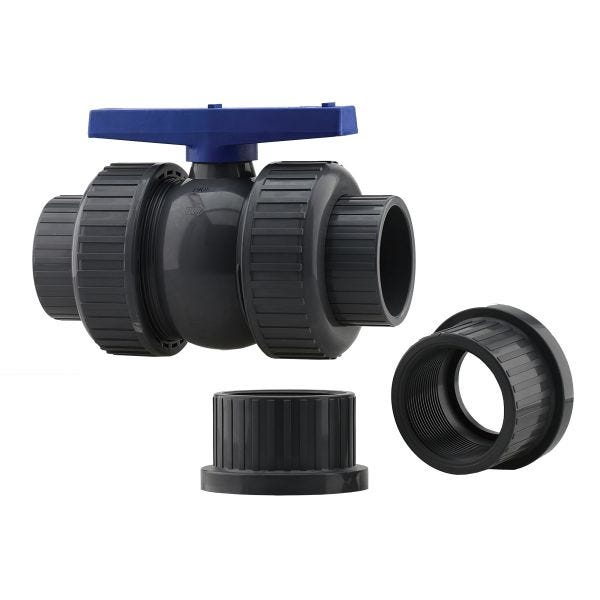

Boshart Industries 0925-30NL
3"PVC SCH/80 TU BALL VALVE
SKU
892876
Boshart Industries True Union Ball Valve, Lead Free, Series: 0925-NL Series, 3 in Nominal, FNPT/Slip End Style, 150 psi Pressure, 73 deg F, 2.72 in Orifice, T-Handle Actuator, PVC Ball, 11.93 in Inlet to Outlet Length, 5.12 in Top to Inlet Center, PVC Body, PTFE/UPVC Trim, EPDM Softgoods, Gray, Import
- Suitable for both SCH 40/STD and SCH 80/XH PVC pipe
- Double union/double block design permits in-line maintenance without disconnecting pipe
- Ends are blocked with bayonet style lock to prevent ball from being blown out
- Comes complete with both threaded and slip end connections
- Blue ABS handle is equipped with removable spanner device
- No lead <0.25% pb by weighted average
- PTFE seat/UPVC stem
- EPDM O-ring/stem packing
| Ball Material | PVC |
|---|---|
| Pressure Rating | 150 psi |
| Series | 0925-NL Series |
| Domestic/Import | Import |
| Actuator Type | T-Handle |
| Body Material | PVC |
| Nominal Size | 3 in |
| Top to Inlet Center | 5.12 in |
| Inlet to Outlet Length | 11.93 in |
| Trim Material | PTFE/UPVC |
| End Style | FNPT/Slip |
| Color | Gray |
| Temperature Rating | 73 deg F |
| Orifice Size | 2.72 in |
| Softgoods Material | EPDM |
| Brand | Boshart Ind |
