BrassCraft Manufacturing TBV8-8
1/2OD FLR X 1/2FIP GAS BV
SKU
529011

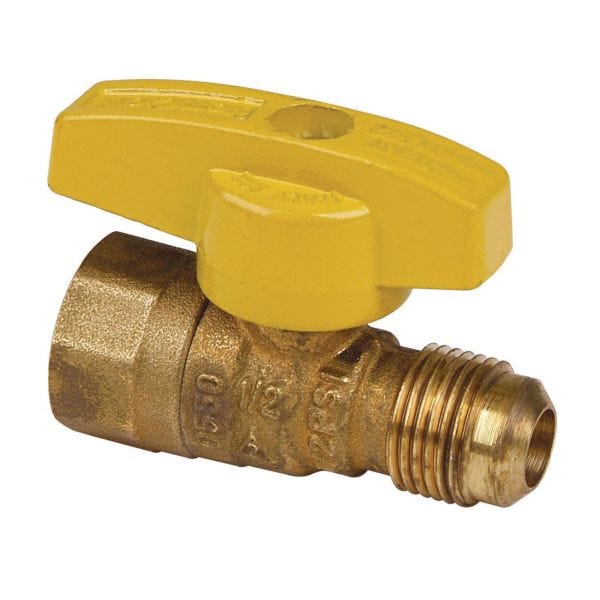

BrassCraft® Ball Valve, Series: TBV, 1/2 in Nominal, Flare x FNPT, 5 psi, 32 to 125 deg F, Media: Gas, Lever Operated Actuator, Brass Ball, 2.41 in Inlet to Outlet Length, 1.45 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, FKM
- Blow-out proof stem assembled from the inside with double O-Ring protection to ensures safe, reliable performance
- Heavy duty forged brass body eliminates pinhole leaks commonly associated with cast products
- PTFE seat rings for longer life and consistent performance
- Quarter-turn operation provides easy on and off flow control
- Comfort-fit grip provides an exclusive integration of the T and lever handle designs
- Large wrench flats makes installation easier
- 100% leak tested
- Aluminum handle
- Steel, zinc plated screw
- FKM O-ring
| Pressure Rating | 5 psi |
|---|---|
| Nominal Size | 1/2 in |
| Temperature Rating | 32 to 125 deg F |
| Top to Inlet Center | 1.45 in |
| Series | TBV |
| End Style | Flare x FNPT |
| Inlet to Outlet Length | 2.41 in |
| Body Material | Brass |
| Softgoods Material | FKM |
| Actuator Type | Lever Operated |
| Trim Material | Brass Stem and PTFE Seat |
| Ball Material | Brass |
| Media | Gas |
| Brand | BrassCraft |
