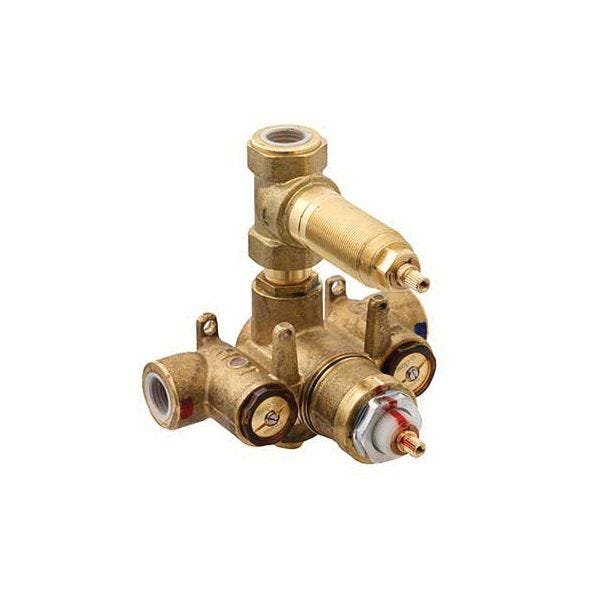

Newport Brass 1-741
NP LUXTHERM 1/2 1PORT THERMOST
SKU
906392
Newport Brass® Thermostatic Rough-In Valve, 1-Port, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet, 1 Ways, 45 psi, 100 deg F, 9 gpm, Solid Brass Body, 5.43 in W x 4.86 in D x 5.96 in H
- Rough-In with integrated 2-way diverter and shut off control
- Built in check valves with service stops
- Provides anti-scald protection and temperature regulation
- High-temperature safety stop ensures water temperature maximum is 100 deg F
- Mounting tabs located on rough-in for secure installation option
- Requires Newport Brass® thermostatic trim
- Luxtherm® thermostatic rough-in valve
| Outlet Connection | 1/2 in FNPT |
|---|---|
| Pressure Rating | 45 psi |
| Number of Ways | 1 |
| Body Material | Solid Brass |
| Type | 1-Port |
| Flow Rate | 9 gpm |
| Temperature Rating | 100 deg F |
| Dimensions | 5.43 in W x 4.86 in D x 5.96 in H |
| Inlet Connection | 1/2 in FNPT |
| Brand | Brasstech Inc. |
