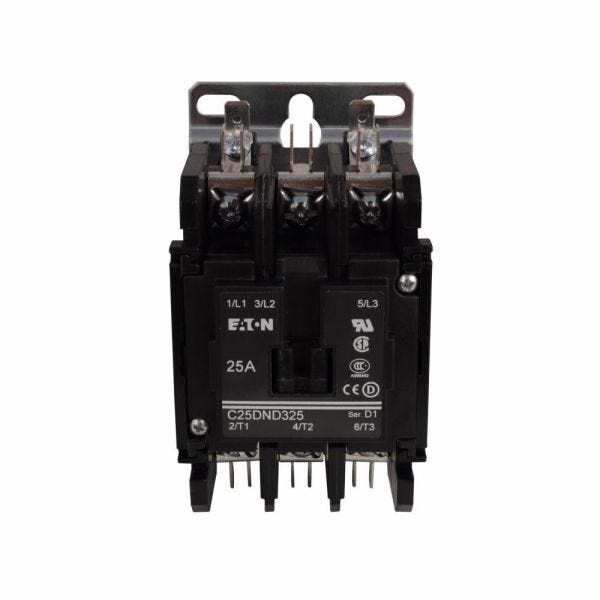

EATON Definite Purpose Control Contactor, D-Frame Non-Reversing, 24 VAC at 50/60 Hz Coil, 30 A Maximum Load Current, 3 Pole, Double Break Contact, Quick-Connect (Side by Side) Connection, Pressure Plate/Screw Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 3.35 in L x 2.4 in W x 3.75 in H Dimensions
- The universal mounting plate eliminates changing hole patterns when replacing competitive devices
- Variety of terminal styles allows product to meet all specific application needs
- Snap-on accessories require no tools for hassle-free installation
- Quick coil changing ability allows for easy maintenance
- Non-position sensitive mounting allows for fast, convenient setup
- Shrouded or fingerproof terminals to reduce possibility of electrical shock
- 15 to 50 A frame
| Coil Voltage | 24 VAC at 50/60 Hz |
|---|---|
| Operating Temperature | 150 deg F |
| Mounting Type | Surface |
| Type | D-Frame Non-Reversing |
| Operating Cycles | 300000 Cycles |
| Contact Type | Double Break |
| Connection Type | Quick-Connect (Side by Side) |
| Dimensions | 3.35 in L x 2.4 in W x 3.75 in H |
| Terminal Type | Pressure Plate/Screw |
| Number of Poles | 3 |
| Enclosure Type | Open |
| Maximum Load Current | 30 A |
| Brand | Eaton |
