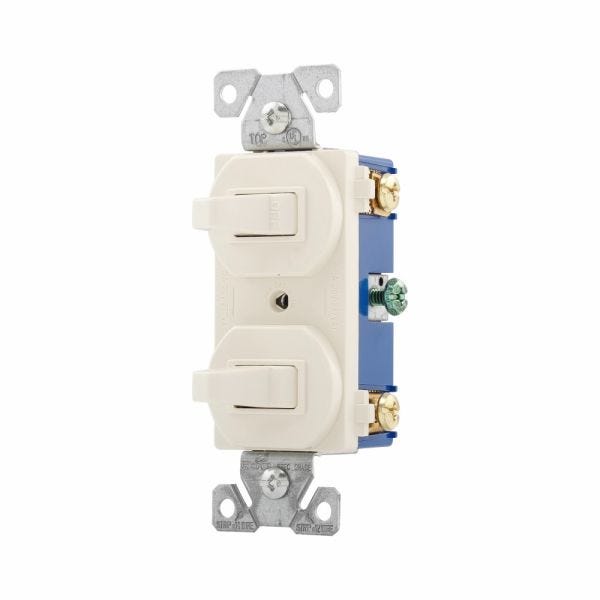

EATON 275LA-BOX
Switch Duplex Comb SP/3Way 15A 120V
SKU
734206
EATON Arrow Hart® AC Toggle Combination Switch, 3-Way Duplex, 120 VAC, 15 A, 1 Poles, Strap, 4.19 in H x 1.3 in W x 1.08 in D, 30000 Cycles Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, Light Almond
- Back and side wire connection
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long term plug retention
- Thick steel mounting strap zinc plated for corrosion resistance
- Break off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept up to 10 AWG solid or stranded wire
- Pilot light may be wired to indicate power "ON" or power "OFF"
- Combination slot/Phillips® head mounting and terminal screws ease installation
- Screw connection
- Heavy duty brass contact
- Toggle actuator
- Switch action
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Mounting straps are zinc plated to for added corrosion resistance
| Operating Cycles | 30000 Cycles |
|---|---|
| Mounting | Strap |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Size | 4.19 in H x 1.3 in W x 1.08 in D |
| Color | Light Almond |
| Type | 3-Way Duplex |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Electrical Ratings | 120 VAC, 15 A |
| Brand | Cooper Wiring Devices |
| Amperage | 15 Amp |
| Number | 3 Pole |
| Type | Switches & Switches |
| Voltage | 120V |
| Color | Light Almond |
