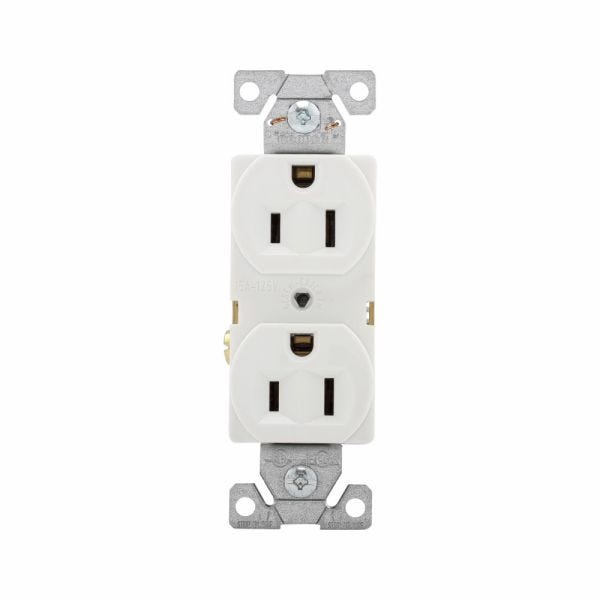

EATON Arrow Hart® Straight Blade Receptacle, Auto Grounding Duplex, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -20 to 70 deg C, Back/Side Wire Terminal, Nylon/PVC, White, 4.19 in H x 0.82 in D Dimensions
- Galvanized steel wrap around yoke mounting strap for superior assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw catch feature on device speeds mounting of wallplates
- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Flush mounting
- Indoor environmental conditions
- Nylon face, PVC base
| Dimensions | 4.19 in H x 0.82 in D |
|---|---|
| Amperage Rating | 15 A |
| Color | White |
| Grade | Commercial |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon/PVC |
| Temperature Rating | -20 to 70 deg C |
| Number of Poles | 2 |
| Type | Auto Grounding Duplex |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | Back/Side Wire |
| Brand | Eaton |
| Color | White |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 15A |
| Number | Duplex |
