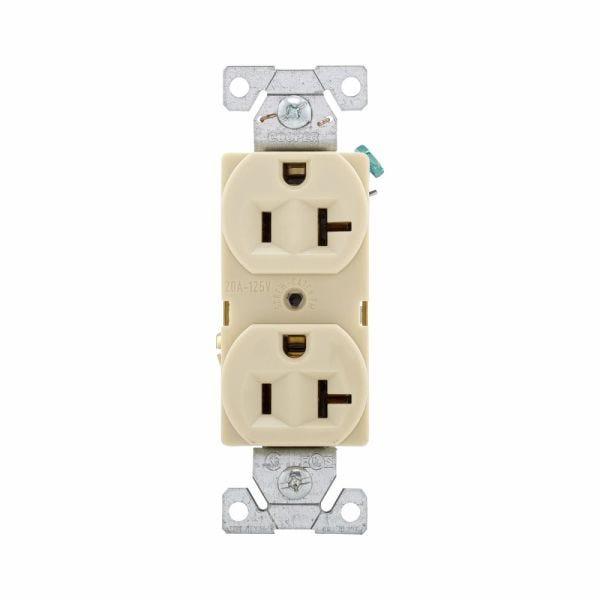

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: BR20, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, Ivory, 4.19 in H x 0.82 in D Dimensions
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC
- 2000 VAC dielectric strength
- Nylon face, PVC base
- Flush mounting
- 14 to 10 AWG wire terminal
| Dimensions | 4.19 in H x 0.82 in D |
|---|---|
| Amperage Rating | 20 A |
| Color | Ivory |
| Grade | Commercial |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon/PVC |
| Temperature Rating | -4 to 158 deg F |
| Number of Poles | 2 |
| Type | Duplex |
| NEMA Rating | NEMA 5-20R |
| Terminal Type | Screw |
| Series | BR20 |
| Brand | Eaton |
| Color | Ivory |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 20A |
| Number | Duplex |
