EATON BR3030B150
100 AMP MAIN BRKER 30 CIR
SKU
689791

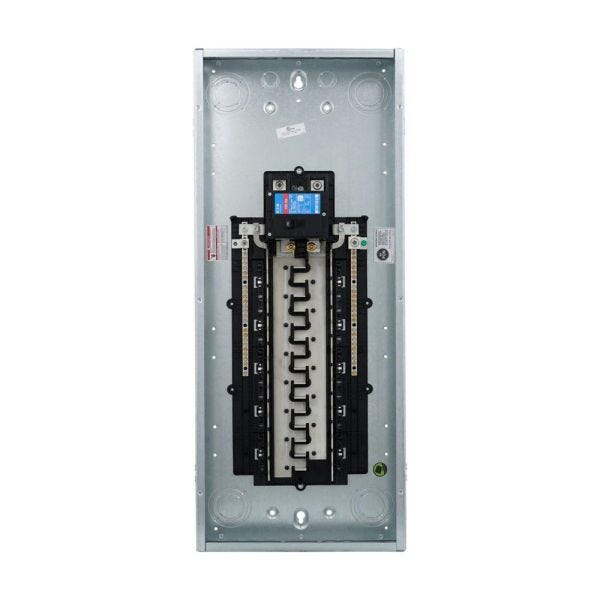

EATON Main Circuit Breaker Load Center, 1-Phase Metallic, Series: BR Series, 120/240 VAC, 150 A, 30 Pole, 10 kA Interrupt, 30 Circuits, BR Breaker, 3-Wire Wiring Configuration, 30 Spaces, 2/0 AWG to 300 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA G1R Enclosure Box, 3.88 in L x 14.31 in W x 21 in H Dimensions
- Flexible neutral design
- Tangential main knockout
- Unique sandalwood finish provides an esthetically appealing, scratch-resistant powder coating
- Factory pre-attached neutral bonding strap
- For use with type BR 1 in breakers
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main breakers
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed through lugs
- Combination mounting
| Wire Size | 2/0 AWG to 300 kcmil |
|---|---|
| Type | 1-Phase Metallic |
| Wiring Configuration | 3-Wire |
| Series | BR Series |
| Enclosure Type | NEMA 1 |
| Number of Circuits | 30 |
| Number of Poles | 30 |
| Breaker Type | BR |
| Mounting Type | Flush |
| Enclosure Box Size | NEMA G1R |
| Dimensions | 3.88 in L x 14.31 in W x 21 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 150 A |
| Housing Material | Galvanized Steel |
| Voltage Rating | 120/240 VAC |
| Number of Spaces | 30 |
| Brand | Eaton |
