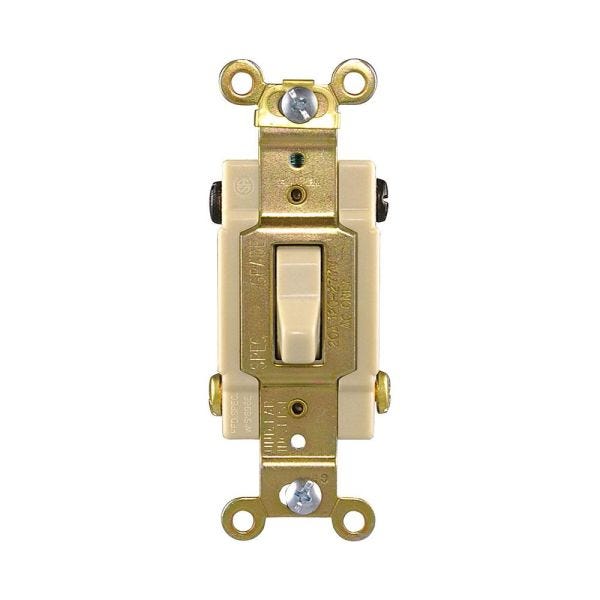

EATON CS420V-BU
4 WAY SWITCH IVORY 20 AMP
SKU
676607
EATON Arrow Hart® Toggle Switch, 4-Way Heavy Duty Specification Grade, Series: CS Series, 120/277 VAC, 20 A, 1 hp Power, Compact Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 30000 Cycles Operating Cycles, Nylon/PVC, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.13 in W x 0.87 in D Dimensions
- Spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG stranded/solid
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws
- Color coded strap marking identifies amperage
- 14 to 10 AWG terminal accommodation
- 3.28 in L screw to screw
- 2.38 in L back
| Dimensions | 1.13 in W x 0.87 in D |
|---|---|
| Power Rating | 1 hp |
| Voltage Rating | 120/277 VAC |
| Operating Cycles | 30000 Cycles |
| Series | CS Series |
| Mounting | Wall |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Color | Ivory |
| Type | 4-Way Heavy Duty Specification Grade |
| Material | Nylon/PVC |
| Terminal Type | Side Wire/Screw |
| Amperage Rating | 20 A |
| Actuator | Compact Toggle |
| Brand | Eaton |
| Amperage | 20 Amp |
| Type | Toggle |
| Color | Ivory |
