Charlotte PVC 07500 0600

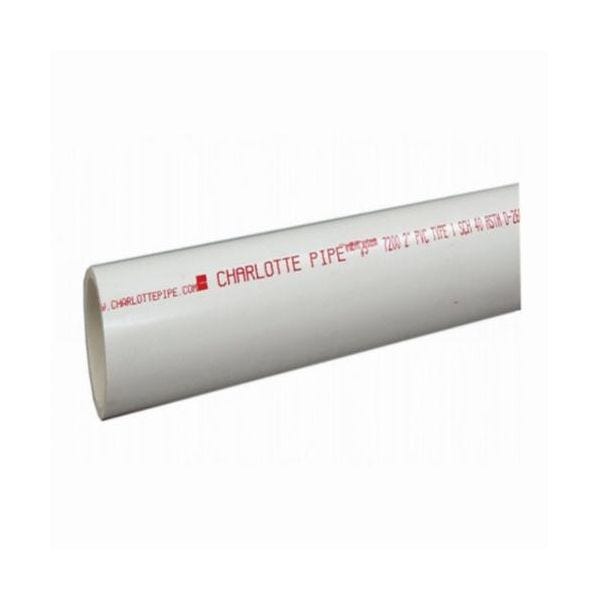

5" X 20' SCH 40 PVC PIPE
SKU
267280
Charlotte Pipe, Type 1 Grade 1, 5 in Nominal, Plain, 5-9/16 in Outside Dia, 20 ft Length, 0.258 in Wall Thickness, SCH 40/STD, 190 psi Working, 32 to 140 deg F, PVC, White, ASTM D1784/D1785, NSF 14/61, Domestic
- Used primarily to line wells for drinking water
- Triple-marked pipe that can also be used in DWV and pressure applications
- Designed to withstand pressure associated with underground well installation
- For use where systems will not exceed 140 deg F
| Nominal Size | 5 in |
|---|---|
| Domestic/Import | Domestic |
| Specifications | ASTM D1784/D1785, NSF 14/61 |
| Wall Thickness | 0.258 in |
| Working Pressure | 190 psi |
| Outside Diameter | 5-9/16 in |
| End Style | Plain |
| Material | PVC |
| Type | Type 1 Grade 1 |
| Temperature Rating | 32 to 140 deg F |
| Length | 20 ft |
| Schedule Rating | SCH 40/STD |
| Color | White |
| Brand | Charlotte |
| Length | 20' |
| Size | 5" |
