Chicago Faucet 131-ABNF
LF CHICAGO E-CAST THERM MIX VLV
SKU
561533

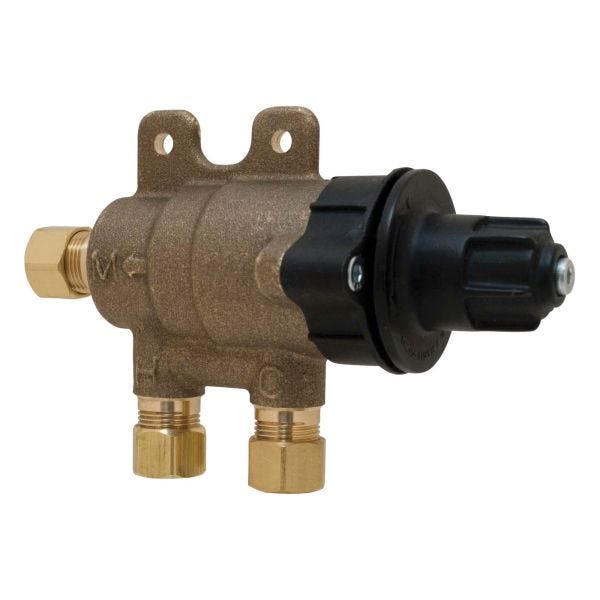

Chicago Faucet® Thermostatic Mixing Valve, 3/8 in Nominal, Compression End Style, 20 to 125 psi Pressure, 80 to 120 deg F, 0.35 to 4.6 gpm Flow, Standard Port, Brass Body, Polished Chrome, 3-1/2 in H x 4-7/8 in W x 2-5/8 in D Dimension, Domestic
- Integral inlet check valves to protect against cross-flow
- Adjustment cap with locking feature
- Corrosion resistant internal components
- Thermostatic wax element design
- Thermostat controls both hot and cold water
- Installs between the stop valves and faucet
- Single use or multiple faucet installations
- Outlet water temperature will be less than hot water inlet temperature
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- Minimum supply pressure: 30 psi (207 kPa)
- Hot inlet temperature: 100 to 180 deg F (38 to 82 deg C)
- ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
| Nominal Size | 3/8 in |
|---|---|
| Body Material | Brass |
| Port Type | Standard |
| Temperature Rating | 80 to 120 deg F |
| Flow Capacity | 0.35 to 4.6 gpm |
| Finish | Polished Chrome |
| Domestic/Import | Domestic |
| Pressure Rating | 20 to 125 psi |
| Dimensions | 3-1/2 in H x 4-7/8 in W x 2-5/8 in D |
| End Style | Compression |
| Brand | Chicago Faucet |
