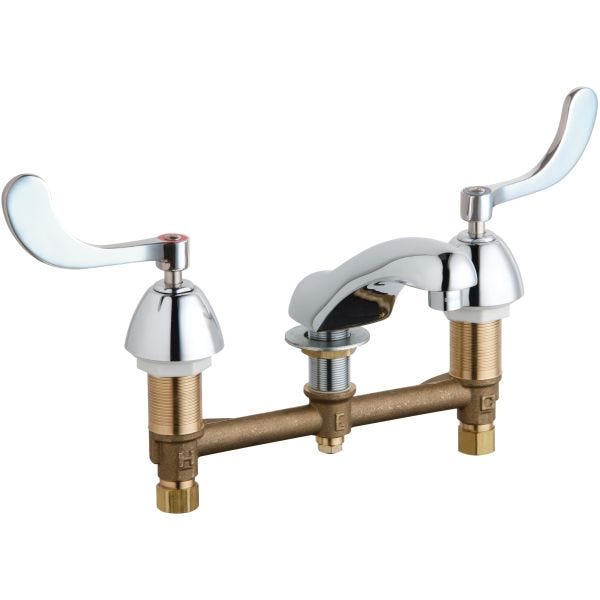

Chicago Faucet 404-V317ABCP
CHIC.8CC LAV FCT,WR/BLDS,5SPT
SKU
653578
Chicago Faucet® Lavatory Sink Faucet, Concealed, Series: 404, 2.2 gpm, 8 in Center Distance, Rigid Spout, 5-1/8 in Spout Reach, 1-3/4 in Spout Height, Vandal Proof Wrist Blade, 2 Handles, 3 Faucet Holes, 1/2 in, NPSM, 1-3/8 in Maximum Deck Thickness, Deck Mount, Quaturn® Compression Valve/Cartridge, 3 in H, Cast Brass, Polished Chrome, Commercial
- 5 in center to center rigid cast brass spout
- E12VPAB 2.2 gpm vandal proof pressure compensating softflo® aerator
- 317-PR vandal proof 4 in wrist blade handle, sixteen-point tapered broach
- 377-XTAB Quaturn® compression operating cartridge
- 1/2 in NPSM supply inlet with coupling nut for 3/8 in or 1/2 in flexible riser
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- For hot and cold water
| Maximum Deck Thickness | 1-3/8 in |
|---|---|
| Commercial/Residential | Commercial |
| Valve/Cartridge Type | Quaturn® Compression |
| Connection Size | 1/2 in |
| Series | 404 |
| Number of Faucet Holes | 3 |
| Center Distance | 8 in |
| Finish/Color | Polished Chrome |
| Dimensions | 3 in H |
| Spout Height | 1-3/4 in |
| Number of Handles | 2 |
| Type | Concealed |
| Material | Cast Brass |
| Spout Type | Rigid |
| Spout Reach | 5-1/8 in |
| Handle Type | Vandal Proof Wrist Blade |
| Flow Rate | 2.2 gpm |
| Mounting Type | Deck |
| Connection Type | NPSM |
| Brand | Chicago Faucet |
