Chicago Faucet 631-GN8AE3ABCP
LF BCK MNT 8CC SWNG GSNK WB
SKU
566871

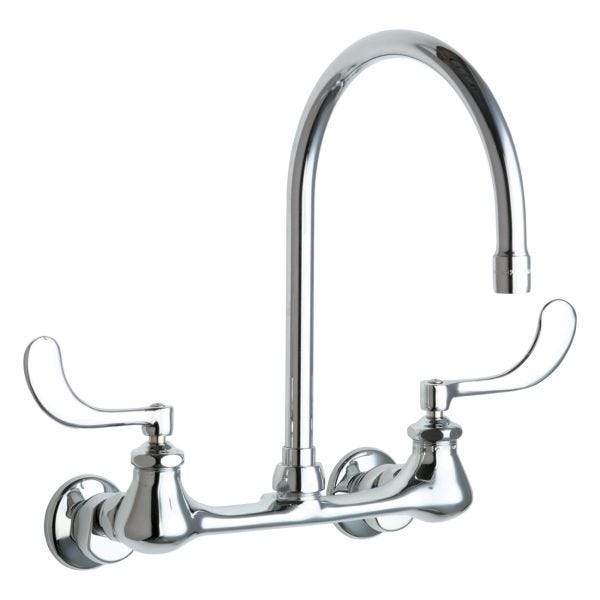

Chicago Faucet® Hot and Cold Water Sink Faucet, 2.2 gpm Flow Rate, 8 in Center Distance, Rigid/Swivel Gooseneck Spout, 8 in Spout Reach, 11-5/8 in Spout Height, Wrist Blade Handle, 2 Handles, 2 Faucet Holes, 1/2 in Connection, FNPT Connection, Spray Pattern: Softflo® Aerator, Wall Mounting, Quaturn® Compression, 11-5/8 in H, Brass, Polished Chrome, Commercial Commercial/Residential
- 8 in body, adjustable arms 7-1/4 to 8-3/4 in centers
- GN8AAB - 8 in rigid/swing gooseneck spout
- E3AB - 2.2 gpm (8.3 lpm) pressure compensating Softflo® aerator
- 317-PR - Vandal proof 4 in wrist blade handle, sixteen-point tapered broach
- XTAB - Quaturn® compression operating cartridge
- GAB - 3/8 in offset inlet supply arm
- 2-5/16 in Dia slip flange
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F operating
- ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
| Handle Type | Wrist Blade |
|---|---|
| Finish/Color | Polished Chrome |
| Spout Type | Rigid/Swivel Gooseneck |
| Material | Brass |
| Number of Handles | 2 |
| Connection Type | FNPT |
| Mounting Type | Wall |
| Spout Height | 11-5/8 in |
| Dimensions | 11-5/8 in H |
| Center Distance | 8 in |
| Connection Size | 1/2 in |
| Valve/Cartridge Type | Quaturn® Compression |
| Commercial/Residential | Commercial |
| Spout Reach | 8 in |
| Number of Faucet Holes | 2 |
| Flow Rate | 2.2 gpm |
| Spray Pattern | Softflo® Aerator |
| Brand | Chicago Faucet |
